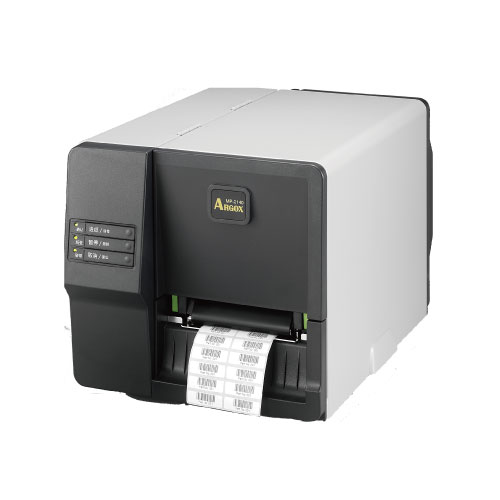

ME-3140

产品说明
• 多种通讯接口
• 强壮的金属外壳
• 加大的存储容量
• 全简体中文的操作接口
• 可容纳8吋外径纸张的超大肚量
标签 :
  • 条形码打印机-碳带长度:300公尺
  • Argox重金打造,隆重推出今年夏天最炙手可热
    最具性价比的全新工业机机种ME-3140!
    • 多种通讯接口
    • 强壮的金属外壳
    • 加大的存储容量
    • 全简体中文的操作接口
    • 可容纳8吋外径纸张的超大肚量
  •   打印方式 热敏/热转
      分辨率 300 dpi
      最大打印速度 1~4英吋(每秒)
      最大打印长度 50英吋(1270毫米)
      最大打印宽度 4.09英吋(104毫米)
      内存 8MB内存(5MB使用者可用)
    8MB闪存(2MB使用者可用)
      中央处理器 32位RISC微处理器
      感测装置 反射式纸张传感器x1(可移动)
    纸张穿透式传感器x1(置中固定)/打印头模块抬起传感器
      操作接口 LED指示灯x3(确认/纸张/碳带)
    按键x3(进纸/暂停/取消)
      通讯接口 并口、串口(RS-232,传输率最高至115200bps)、USB
      字型
      无线网络安全 N/A
      一维条形码 Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS)
      二维条形码 MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes、Aztec Barcode、Micro PDF417
      图片格式
      指令集 PPLA, PPLB
      卷标编辑软件 Seagull驱动程序、BarTender
      软件工具 Printer Utility、Font Utility
      驱动程序 Seagull驱动程序
      纸张种类 纸张式、标签式(间距纸、连续纸、折迭纸、票卷、吊牌…等)
    外卷式/内卷式皆适用
      纸张规格 最大宽度:11公分
    最小宽度:2.54公分
    厚度:0.00635至0.0254公分
    最大外径:20.3公分
    内径尺寸:2.54公分/3.81公分/7.62公分
    (内外卷皆适用)
      碳带规格 碳带卷最大外径:6.7公分
    碳带最大长度:300公尺
    碳带轴内径宽度:2.54公分
    碳带宽度:1至4吋,蜡质、半蜡半树脂、全树脂
    (内外碳皆适用)
      防摔系数 N/A
      条形码打印机尺寸 248毫米(宽) x 406毫米(长) x 260毫米(高)
      条形码打印机重量 8.9公斤
      电源供应 内建电压自动切换式电源供应器
    100~240V, 50
    ~60Hz
      电池 N/A
      环境条件 操作温度:40˚F~100˚F(4˚C~38˚C)
    (相对湿度:10%~90%)
    储存温度:-4˚F~122˚F(-20˚C~50˚C)
      Real Time Clock N/A
      标准配件 N/A
      选购配件 裁纸器、纸架、定时器RTC卡
      安規認證 CE, FCC, cTUVus, CCC, RoHS
      注意事项 * 立象科技保留增加和修改规格的权利,恕不另行通知。 请联络立象科技业务代表以获取最新规格。
    • BarTender 2022 R6

      条码打印软件,所有型号适用
      支持 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      条码打印软件,所有型号适用
      支持Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      条码打印软件
      所有型号适用, 限Windows XP操作系統

    • ArgoBar Pro V2.16

      条码打印软件
      支持Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      支持语言: 英文, 简体中文, 繁体中文 Argobar Pro 支持 ODBC 数据库连接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • Font Utility V3.04

      字型编辑工具
      Windows XP 及更新版本. 本工具软件可使用 true type font(TTF) 及打印机内字体. 支持 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Printer Utility V4.37

      供打印机额外设定使用. 支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 软件开发工具供专业用户. 支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.
