PA-60

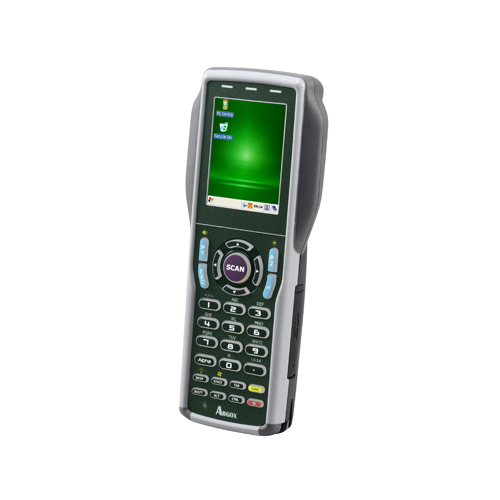

The PA-60 Mobile Computer is a powerful wireless handheld computing device based on the Windows CE® operating system and a fast CPU. The ergonomic, compact and durable PA-60 features a bright 2.4-inch TFT 320 x 240 QVGA display with touch screen, a high performance barcode scan engine, wireless communication support including Bluetooth and high speed wireless LAN 802.11b/g, and external USB and RS-232 interfaces. Memory capability includes 256MB DRAM, 256MB Nand Flash, and one standard SD card slot for expanded memory space demands.

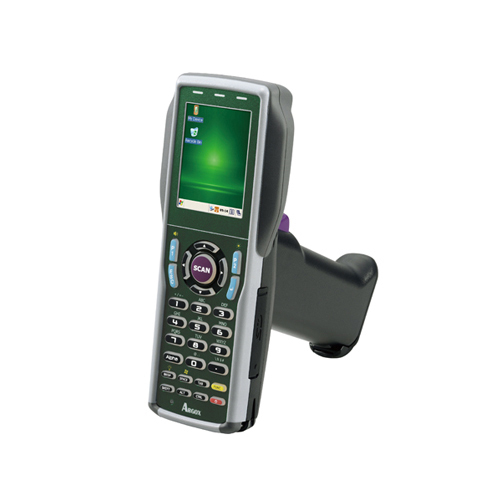

Lightweight at only 250g, the ergonomic PA-60 has an optional pistol grip for ease of scanning. Shockproof, dustproof, and waterproof in compliance with IP54 standards the PA-60 is built for rough environments. For generic applications, the PA-60 comes with a standard, comprehensive software developer kit (SDK) that supports a variety of I/O driver APIs, such as communications, Auto ID reading, DI/O control, and others. Accessories include a charging and communication cradle and cable, a pistol grip, and a four slot charging cradle. The PA-60 is suitable for a wide variety of applications including retail, distribution, warehouse, and logistics.

External I/O Interface	USB / RS-232
Expansion Slot	Standard SD (32G)
OS	Microsoft Windows CE .NET 5.0 Professional
CPU	ARM9 Core 533MHz
RAM	256MB
ROM	256MB
Display	2.4” LCD TFT Transmissive, 320 x 240 QVGA 65K colors with Touch panel
Indicators	LED, Beeper and Vibrator
Keypad	29 keys
Terminal Dimensions	169.0mm(L) x 70.1mm(W) x 34.0mm(H)
Terminal Weight	250g(battery included)
Image Sensor	PA-60/PA-6030:CCD, PA-6230:Area imager
Decode Capability	PA-60 / PA-6030: Chinese 2/5, Codablock F, Code 11, Code 49, Discrete 2 of 5 (DTF), EAN-13, IATA 2/5, Industrial 2/5, Matrix 2/5, Postnet, Standard 2 of 5, TRI-OPTIC, UCC composite, UK plessey, UPCA, Canadian Post, Postal Code, Code-16K, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded). PA-6230: Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5 (DTF), EAN-13, EAN-8, Interleved 2/5, ISBT-128, Italian Pharmacode ( code 32), Korean 3 of 5, MSI plessey, UPCA, UPCE, UPC-E1, UPU FICS Postal, US Planet, US POSTNET, USPS, Australian Post, Japan Post, KIX Post, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), Aztec Code, Data Matrix, MaxiCode, Micro QR, QR, OCR
Resolution	5mil
Depth of Field	PA-60/PA6030: Code 39 5mil 99-128mm, Code 39 10mil 53-287mm, Code 39 13mil 64-410mm, Code 39 20mil 85-620mm, EAN 13mil 56-320mm. PA-6230: Code 39 5mil 50-175mm, Code 39 10mil 50-325mm, Code 39 13mil 65-400mm, Code 39 20mil 70-485mm, EAN 13mil 55-355mm.
Scan Rate	CCD:100 scans/second
Communication Interface	USB, RS-232
Operating Temperature	-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature	-20°C ~ 70°C / -4°F ~ 158°F
Humidity	Operating: Non-condensed 90%
Drop Resistance	1.2 meters to concrete(Handset), 0.9 meters to concrete(Cradle)
Sealing	IP54
Electrostatic Discharge	(+/- 15 KV) air discharge / (+/- 8 KV) direct discharge
Software	N/A
Program Language	N/A
Developing Tools	Visual Studio NET, Visual Studio 2005,Software Development Kit (SDK),Scanner Configuration Utility
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 5V, 3A
Battery	1) Data collector: Rechargeable 3.7V 1950mAh Li-Polymer Battery. 2) Optional Pistol Grip: Rechargeable 3.7 V 5000mAh, li-ion Battery.
Cradle	Device cradle with single slot battery compartment, Four-slot charger
Accessory	● Communication and Charging Cables: Seriel/USB cable with charging ● Battery Charger: Device cradle with single slot battery compartment, Four-slot charger ● Other: Pistol Grip, Carry case,
Wireless Communications	PA-6030/PA-6230 WPAN: Bluetooth Class2, version EDR V2.1 WLAN:Wi-Fi 802.11b/g/n
Agency Listing	CE, FCC, RoHS, WEEE, BIS
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
