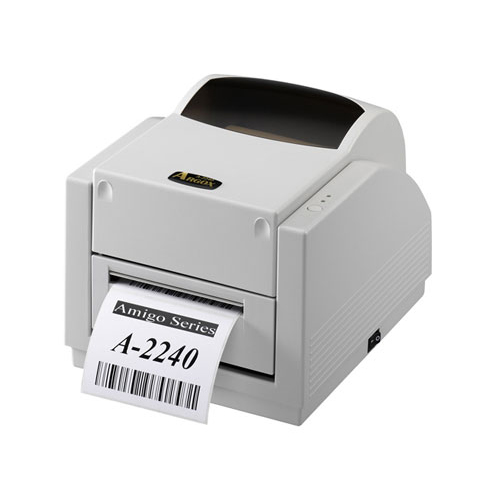

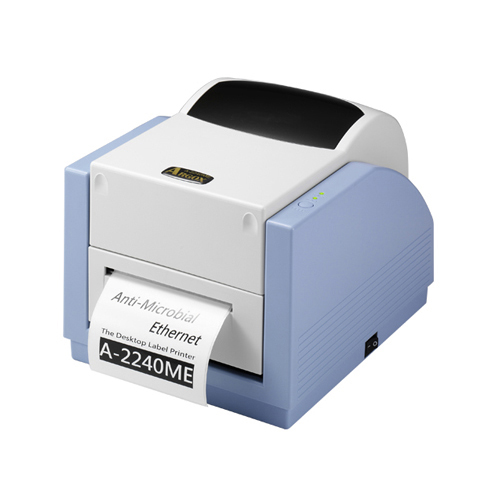

A-2240 / A-2240M

產品說明
型號列表:A-2240, A-2240M

• 32位元中央處理器與5吋列印速度提供絕佳列印品質,可列印標籤、布標、硬紙卡。
• 印字頭置中設計可避免碳帶產生皺摺。
• 設計有可移動反射式與感測式,及A-2240機種增加置中的感測式紙張偵測裝置,可偵測多種不同型態紙張。
• 提供並列埠、串列埠、USB等通訊介面,A-2240機種有內建式乙太網路選配。
• 可容納5吋紙捲。
• 連桿式列印頭開關,方便耗材更換,操作簡單。
• 方便更換紙捲與碳帶安裝設計,剝紙器與裁紙器模組化,安裝快速。
• 支援1D/GS1 Data bar 、2D/Composite codes與QR barcode。
• 多種選購配件︰裁紙器、剝紙器、紙捲架、RTC卡。
• 網路伺服器選購:無線網路或藍芽。
標籤 :
  • 條碼印表機-碳帶長度:100公尺
  • 條碼印表機-列印寬度:4吋
  • A-2240 熱轉式標籤條碼列印機,為A-200機種的升級版,具備優異紙張感測裝置設計、軟體面整合簡易兩大特點,外殼堅固耐用、造型具現代感。列印速度可達每秒5 ips,最大列印長度為127公分,內建32位元微處理器、4M快閃記憶體及8M DRAM、5吋紙捲,可輕鬆下載所需的Windows true type字型。
    紙張偵測裝置設計上,可移動反射式與感測式,能偵測多種不同型態紙張,也可應用於醫療業如病人追蹤管理、檢驗等,值得一提的是,增加置中的穿透式感測器設計,可支援服飾吊牌的印製,提昇銷售與庫存管理效率。在現行條碼標準方面,A-2240可列印1D的GS1 Databar、2D的composite及QR Code。A-2240是能夠創造極佳效益的入門款商用桌上型條碼列印機。
  •   列印方式 熱感式 & 熱轉式
      解析度 203 dpi(8 dots/mm)
      最大列印速度 5 ips
      最大列印長度 100”(2540mm)
      最大列印寬度 4.1”(104mm)
      記憶體 8MB DRAM, 4MB Flash ROM
      中央處理器 32 位元RISC 微處理器
      感測裝置 紙張反射式感測器x 1(可調整) & 紙張穿透式感測器x 1(固定式)
      操作介面 LED指示燈x 2 ,按鍵x 1
      通訊介面 USB device, RS-232
      字型 5種國際標準字型(1.25mm~ 6mm),最大可達 24x24,四方向旋轉0°~270°,可由軟體下載Windows True Type 字型
      無線網絡安全 N/A
      一維條碼 PPLA: Code 39, UPC-A, UPC-E,Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 Random Weight, Telepen, FIM, Interleave 2 of 5 (Standard/with modulo 10 checksum/with human readable check digit/with modulo 10 checksum & shipping bearer bars), GS1 Data bar (RSS)
    PPLB: Code 39 Std. & Extended, UPC-A, UPC-E, Matrx 2 of 5, UPC-Interleaved 2 of 5,Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar, Postnet, Code128 subset A/B/C, Code 128 UCC (shipping container code), Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5,UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on,UPCE 2/5 digit add-on, GS1 Data bar (RSS)
    PPLZ: Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sum digit, MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey, GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, Logmars
      二維條碼 PPLA /PPLZ : MaxiCode, PDF417,Data Matrix (ECC 200 only),QR code, Composite Codes, Aztec Barcode, Micro PDF417
    PPLB: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec Barcode
      圖片格式 PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB Only)
    PPLZ : GRF, Hex and GDI
      指令集 PPLA, PPLB, PPLZ
      標籤編輯軟體 BarTender® from Seagull Scientific
    Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      軟體工具 Printer Utility, Font Utility
      驅動程式 Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10)
    Argox Linux Printer Driver
    Argox macOS Printer Driver
    Argox RPi Printer Driver
      紙張種類 紙捲式、標籤式(間距紙、連續紙、折疊紙、票券、吊牌...等)
      紙張規格 最大寬度: 4.33"(110mm)。 最小寬度: 1"(25.4mm)。 厚度: 0.0025"〜0.01"(0.0635mm〜0.254mm)。 紙捲外徑(OD):5"(127mm)。 紙捲內徑:1"(25.4mm)
      碳帶規格 寬度:1"~4"(25.4mm~110mm)。 最大外徑:1.45"(38mm)。 最大長度:100m。 軸心內徑:0.5"(13mm) (須有notch安裝凹洞)。 適用種類:蠟質、半蠟半樹脂、全樹脂 (外碳帶)。
      防摔係數 N/A
      條碼列印機尺寸 201mm(寬) x 179mm(高) x 245mm(深)
      條碼列印機重量 2.2 kgs
      電源供應 切換式電源供應器,輸入: 100V~240V±10%, 50~60Hz,輸出: 24VDC, 2.5A
      環境條件 操作環境:4°C~38°C(相對溼度0% ~ 90%) 儲存環境:-20°C~50°C
      環境條件 操作環境:4°C~38°C(相對溼度0% ~ 90%)
    儲存環境:-20°C~50°C
      Real Time Clock N/A
      標準配件 N/A
      選購配件 裁紙器、剝紙器、RTC卡、紙捲架
      安規認證 CE, FCC, CCC, RoHS
      注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。
