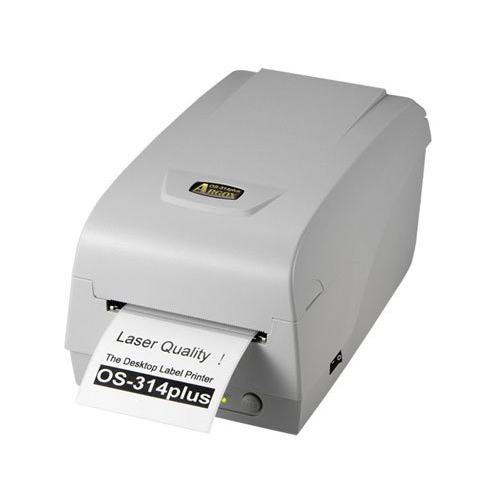

OS-314plus

產品說明
型號列表:OS-314plus

• 提供並列埠、串列埠和USB三種通訊介面。
• 維護更方便︰只需打開10顆螺絲就能完全拆卸。
• 印字頭可在2秒內更換完成。
• 方便更換紙捲與碳帶安裝設計。
• 可掀式上蓋能滿足特殊應用之需求。
• 多種選購配件︰裁紙器、紙捲架、RTC卡。
標籤 :
  • 條碼印表機-碳帶長度:100公尺
  • 條碼印表機-列印寬度:4吋
  • OS-314plus提供300dpi 解析度,繼承了暢銷機型OS-214機種的所有特點,更加大記憶體能處理及儲存更大的資料量,能滿足更多市場應用。多種通訊介面(並列埠、串列埠 和USB介面)可選擇,使用方便靈活運用。
    OS-314plus 完美的列印功能及品質要求,適用於圖書館、醫院、政府機關公文追蹤、辦公室自動化、零售業條碼化的應用。此外,OS-314plus通過Energy Star 節能認證,絕對是您最佳的選擇。
  •   列印方式 熱感式 & 熱轉式
      解析度 300 dpi(12 dots/mm)
      最大列印速度 4 ips
      最大列印長度 50”(1270mm)
      最大列印寬度 4.16”(105mm)
      記憶體 8MB DRAM, 4MB Flash ROM
      中央處理器 32 位元RISC 微處理器
      感測裝置 紙張反射式感測器(左側)
      操作介面 LED指示燈x 2 ,按鍵x 1

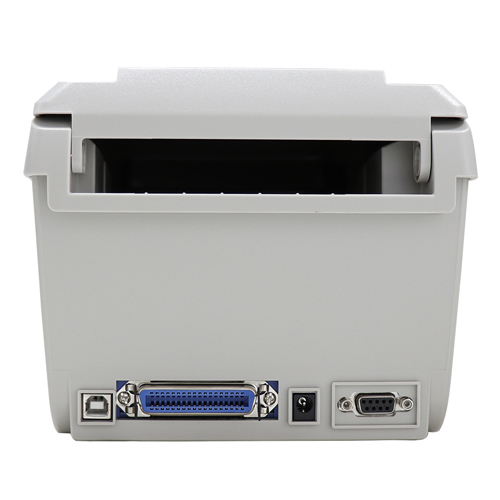

      通訊介面 USB device, RS-232, Parallel
      字型 5種國際標準字型(1.25mm~ 6mm),最大可達 24x24,四方向旋轉0°~270°,可由軟體下載Windows True Type 字型
      無線網絡安全 N/A
      一維條碼 PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars , Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen , FIM PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, Postnet
      二維條碼 PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes PPLB: MaxiCode, PDF-417, QR Code, Composite codes
      圖片格式 PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, Binary raster, GDI (BMP files can be converted to PCX file in the printer utility)
      指令集 PPLA, PPLB
      標籤編輯軟體 BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      軟體工具 Printer Utility, Font Utility
      驅動程式 Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      紙張種類 紙捲式、標籤式(間距紙、連續紙、折疊紙、票券、吊牌...等)
      紙張規格 最大寬度:4.33"(110mm)。 最小寬度:1"(25.4mm)。 厚度:0.0025"~0.01" (0.0635mm ~0.254mm)。 紙捲外徑:4.3"(109mm)。 紙捲內徑:1"(25.4mm)。 經銷商選配:紙捲外徑(OD):3.8"(96.5mm),紙芯尺寸:1.5"(38.1mm)。 紙捲外徑(OD):4.3"(109 mm),紙芯尺寸:1."(25.4mm)
      碳帶規格 寬度:1"~4"(25.4mm~110mm)。 最大外徑:1.45"(37mm)。 最大長度:92m。 軸心內徑:0.5"(1.3mm) (須有notch安裝凹洞)。 適用種類:蠟質、半蠟半樹脂、全樹脂 (外碳帶)。
      防摔係數 N/A
      條碼印表機尺寸 189mm(寬) x 155mm(高) x 285mm(深)
      條碼列印機重量 2.0 kgs
      電源供應 切換式電源供應器,輸入: 100V~240V±10%, 50~60Hz,輸出: 24VDC, 2.5A
      電池 N/A
      環境條件 操作環境:4°C~38°C(相對溼度0% ~ 90%) 儲存環境:-20°C~50°C
      Real Time Clock N/A
      標準配件 N/A
      選購配件 裁紙器、外掛紙架、RTC卡
      安規認證 CE, FCC, CCC, RoHS, BSMI
      注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。
    • ArgoBar Pro V2.16

      標籤編輯軟體​
      支援 Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
      ​支援語系: 英文, 簡體中文, 繁體中文 Argobar Pro 支援 ODBC 資料庫連接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender 2022 R6

      標籤編輯軟體
      支援 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      標籤編輯軟體
      支援Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      標籤編輯軟體
      支援Windows XP

    • Font Utility V3.04

      Windows XP 及更新版本. 本工具軟體可使用 true type font(TTF) 及印表機內字體.
      支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Printer Utility V4.37

      供印表機額外設定使用.
      支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 軟體開發工具供專業使用者.
      支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)
