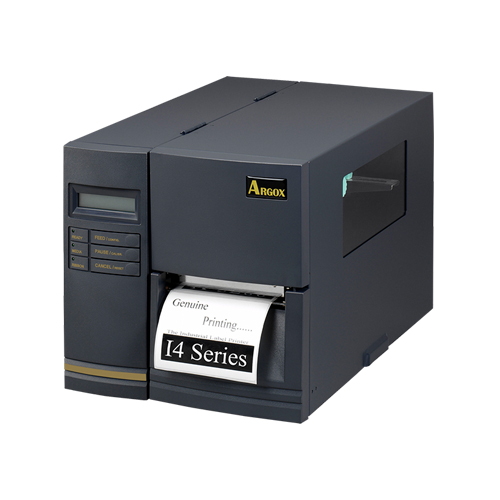

I4-250

產品說明
型號列表:I4-250

• 品質+速度。
• 全方位的通訊介面。
• 新的刀具設計。
• 性能提升。
標籤 :
  • 條碼印表機-碳帶長度:360公尺
  • I4系列以金屬打造堅固外殼,傳承立象科技工業機傳統,可靠耐用。除了碳帶不易皺褶的優勢之外,更具備自動內碳外碳支援功能,並且內建了完整連接介面,雙USB hosts主機連接埠,可選配Wi-Fi無線網路,能靈活應用於各種不同產業。

    I4系列工業機,最高列印速度可達到8IPS,比以往的機型提升了33%的列印速度,列印過程更順暢,而且在最高列印速度時,仍可保持最佳品質。

    內建乙太網路,雙USB hosts主機連接埠,USB device裝置連接埠,RS-232串列埠,並且可選配Wi-Fi無線網路,GPIO連接埠,Parallel並列埠,Buzzer蜂鳴器,無論是有線或無線裝置,都可輕鬆連接,增加了單機操作的裝置擴充性。

    使用新設計的可翻轉式裁刀,包含全切式與半切式兩種裁刀,全切式裁刀可裁切有背膠的連續標籤紙,裝紙不費力,卡紙排除簡單。

    I4系列工業機在軟體的方面也大幅改善,新推出「一鍵定位測紙」功能,包含智慧模式及聰明立即印模式,能大幅改善測紙效率,並節省紙張。I4系列工業機開啟電源後會自動偵測PPLA,PPLB,PPLZ等程式語言,無須設定。
    2017-12-13-news-004

  •   列印方式 熱感式 & 熱轉式
      解析度 203 dpi (8 dots/mm)
      最大列印速度 8 ips
      最大列印長度 100”(2540mm)
      最大列印寬度 4.25” (108mm)
      記憶體 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32 GB) (FAT32 format)
      中央處理器 32 bit RISC microprocessor
      感測裝置 紙張反射式感測器x 1(可調整) & 紙張穿透式感測器x 1(可調整)
      操作介面 LED指示燈 x 3, 按鍵x 3, 中文背光式LCD顯示器
      通訊介面 USB device, RS-232, Ethernet, USB host x 2
      字型 5種國際標準字型(1.25mm~ 6mm),最大可達 24x24,四方向旋轉0°~270°,可由軟體下載Windows True Type 字型
      無線網絡安全 N/A
      一維條碼 PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、, UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
      二維條碼 PPLA/PPLB/PPLZ:MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes、Aztec
      圖片格式 PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI
      指令集 PPLA, PPLB, PPLZ
      標籤編輯軟體 BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      軟體工具 Printer Tool
      驅動程式 Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      紙張種類 紙捲式、標籤式(間距紙、連續紙、折疊紙、票券、吊牌...等)
      紙張規格 最大寬度:4.4"(112mm)。 最小寬度:1"(25.4mm)。 紙張厚度:0.0025"~0.01"(0.0635mm~0.254mm)。 紙捲軸心:3"(76mm)可容紙捲外徑8"(203mm)。 紙捲軸心:0.5"(38mm)可容紙捲外徑7"(177.8mm)。
      碳帶規格 寬度:1"~4.4"(25.4mm~112mm)。 最大長度:360m(蠟質)/300m(半樹脂)。 最大外徑:3"(76mm)。 軸心內徑:1"(25.4mm)。 適用種類:蠟質、半蠟半樹脂、全樹脂(內捲式和外捲式碳帶皆適用)。
      防摔係數 N/A
      條碼列印機尺寸 250mm(寬) x 263mm(高) x 418mm(深)
      條碼列印機重量 13 kgs
      電源供應 電源供應器交流輸入100~240V, 50~60Hz
      電池 N/A
      環境條件 操作環境:40˚F~104˚F (4˚C~40˚C). 相對溼度:0%~90% 儲存環境:-4˚F~122˚F (-20˚C~50˚C).
      標準配件 N/A
     標準配件 N/A
      選購配件 全切裁紙器、半切裁紙器、旋刀裁紙器、剝紙器、內部紙張迴捲器、並列埠模組, GPIO、WLAN、外掛紙架
      安規認證 CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI, BIS
      注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。
    • ArgoBar Pro V2.16

      標籤編輯軟體​
      支援 Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
      ​支援語系: 英文, 簡體中文, 繁體中文 Argobar Pro 支援 ODBC 資料庫連接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender 2022 R6

      標籤編輯軟體
      支援 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      標籤編輯軟體
      支援Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      標籤編輯軟體
      支援Windows XP

    • Printer Tool V1.1.1

      印表機設定軟體

    • Font Utility V3.04

      Windows XP 及更新版本. 本工具軟體可使用 true type font(TTF) 及印表機內字體.
      支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 軟體開發工具供專業使用者.
      支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.
