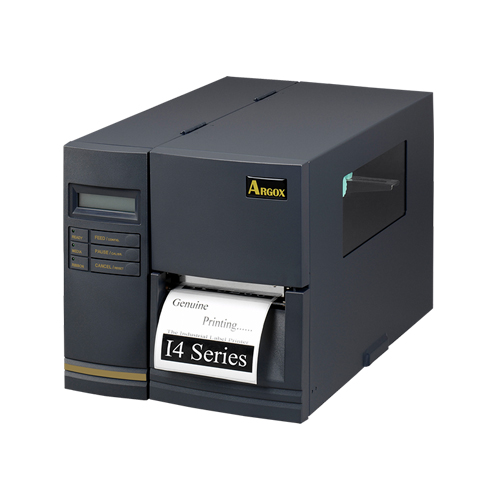

I4 industrial printers are constructed with an all-metal frame to inherit the beauty of durability and reliability. I4 series have wrinkle-free design, apply automatically to both Inside wound ribbon and Outside wound ribbon, and feature full support of interfaces - Dual USB hosts, Serial, Ethernet, and Wi-Fi can be expanded to fit in all type of applications.
I4-series industrial printer - UP to 8 IPS, 33% faster than previous models. It can deliver much smoother printing process and maintain top printing quality under high speed.
By equipping with new flip-down type cutters, including full-cut and partial-cut types, I4-series Industrial printer comes with user friendly design that makes your media loading time much easier, be means of simple media-jam free instructions. In addition to cutting backing paper, the full-cut cutter can also work on continuous labels with adhesive.
I4-series Industrial printers have dramatically improved on software funcitons. New feature “one-key media positioning” consists by Intelligent Print Mode and Smart Print Mode, will greatly improve media detection and reduce wasted labels. Once I4 series printer is powered on - It will have emulation auto detect function, between PPLA, PPLB, and PPLZ.
-
Printing Method Direct Thermal & Thermal Transfer Printing Resolution 203 dpi (8 dots/mm) Printing Speed Max. 8 ips Printing Length Max. 100”(2540mm) Printing Width Max. 4.25” (108mm) Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32 GB) (FAT32 format) CPU Type 32 bit RISC microprocessor Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable) Operation Interface LED indicator x 3, Button x 3, LCD Display x 1 Communication Interface USB device, RS-232, Ethernet, USB host x 2 Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font Wireless Security N/A 1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked 2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode Graphics PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI Emulation PPLA, PPLB, PPLZ Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) Software-utility Printer Tool Driver tools Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label Media Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8”(203mm) OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core. Ribbon Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length:max 360m Wax, 300m Semi-Resin. Max OD 3” (76mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) Drop Resistance N/A Printer Dimensions W 250mm x H 263mm x D 418mm Printer Weight 13 kgs Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz Battery N/A Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) Real Time Clock Standard Standard Item N/A Optional Items Guillotine-Full Cutter / Partial Cutter, Rotary Cutter, Dispenser, Peeler, WLAN, GPIO, Parallel module, External media stand Agency Listing CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
I4 Series Brochure EN
I4 Series Brochure EN V2.4
-
I4 Series Brochure TW
I4 Series Brochure TW V2.4
-
-
-
I4 Series User Manual EN
I4 Series User Manual EN V1.4
-
I4 Series User Manual ES
I4 Series User Manual ES V1.2
-
I4 Series User Manual PT
I4 Series User Manual PT V1.2
-
I4 Series User Manual TW
I4 Series User Manual TW V1.4
-
I4 Series Benutzerhandbuch
I4 Series Benutzerhandbuch V1.0
-
I4 Series Quick Installation Guide
I4 Series Quick Installation Guide
-
I4 Series Cutter Quick Installation Guide EN
I4 Series Cutter Quick Installation Guide EN
-
I4 Series WiFi Quick Installation Guide EN
I4 Series WiFi Quick Installation Guide EN
-
GPIO Service Manual EN
GPIO Service Manual EN
-
Printer Tool User Manual EN
Printer Tool User Manual EN V1.0
-
Web Setting Tool for LAN EN
Web Setting Tool for LAN EN V1.0
-
Web Setting Tool for LAN TW
Web Setting Tool for LAN TW V1.1
-
-
-
ArgoBar Pro V2.16
Barcode editing software
Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2021 R8
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
BarTender UL 10.1
Barcode editing software
Support Windows XP -
Printer Tool V1.1.0
Printer setup software
-
Font Utility V3.04
Font tool
For Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP -
Command Library V4.12
Command Library V4.12 software developing tool for professional users.
Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit) -
Argox SDK V1.4.0
SDK supports Java、C#/Windows/Android/Linux system, PPLB, PPLZ emulation.
-
-
-
Argox Seagull Driver Argox_2023.2_M-1
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
-
Argox Seagull Driver XP
Windows XP
-
Argox Linux Printer Driver V1.8.0 32-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox Linux Printer Driver V1.8.0 64-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox macOS Printer Driver V1.8.0
for OS X EI Capitan (Version: 10.11.6) ~ macOS Monterey (Version: 12.2)
-
Argox RPi Printer Driver V1.8.0 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi Printer Driver V1.8.0 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
-
