AI-6801

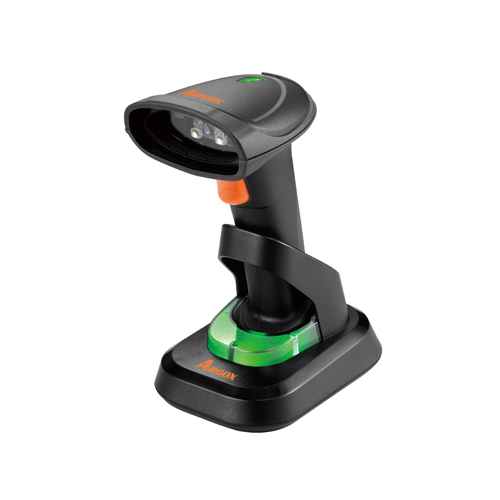

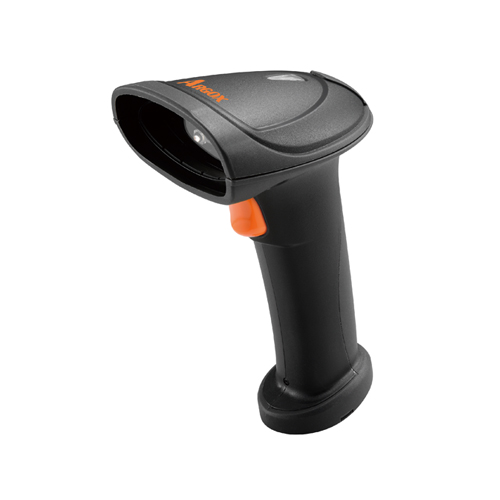

AI-6801 is the first rugged 1D linear scanner in Argox. Industrial grade IP65 dust and water resistance with 1.8 meters safe drop distance protection. It will withstand sudden drops and a variety of collision. Unlike the stand design and look of industrial barcode scanners, AI-6801 has more slick and ergonomic design for function and aethetic.
AI-6801 is compatible to standard 1D linear barcode, it also remove any reflection interference from the LCD display. Under Presentation-mode can also reduced the inconvenience while you are in the retail or packaging.
AI-6801 has high density resolution that can capture the code on 3mil barcode such as jewelry tag. To achieve more efficiency you want, the scan process is only in 0.0012 seconds.
AI-6801, with long DOF designed that is capable of capturing 1D barcode in long distance. That will be suitable for retail, warehousing and logistic industry.
The era of Big Data is coming, AI-6801 comes with DataMagic data editing software to enhance your usability. It takes no time to complete the setting with the user-friendly UI design; you will be able to complete the data analysis in no time.

Light Source	625nm Visible Red LED
Image Sensor	2500 pixel CCD
Depth of Field	3mil 55 ~ 75 mm, 4mil 55 ~ 105 mm, 5mil 45 ~ 125 mm, 10mil 45 ~ 305 mm, 13mil 50 ~ 405 mm, 20mil 40 ~ 570 mm, EAN13 13mil 43 ~ 335 mm
Resolution	3mil (Code 39)
Print Contrast Ratio (minimum)	15%
Decode Capability	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, Code-16K, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited)
Wireless Communications	BT class1 Version 2.1+EDR 100 meters range
Communication Interface	USB, RS-232
Scan Indicators	LED, Beeper and Vibrator
Scanner Dimensions	94mm x 76mm x 158mm

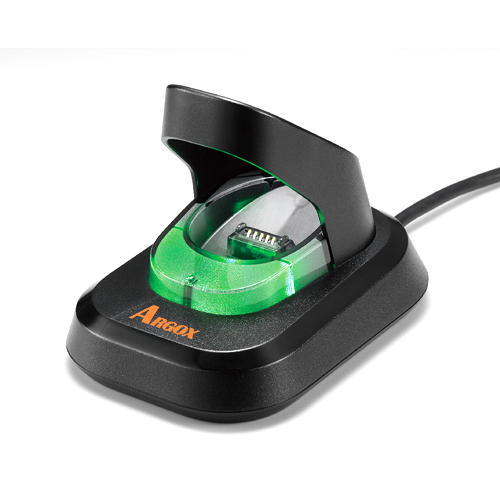

Cradle Dimensions	130mm x 88mm x 95mm
Input Voltage	5V+/- 5%
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage	-20°C to 70°C (-4°F to 158°F)
Humidity	5% to 95% related humidity, non-condensing
Ambient Light	Up to 100,000 lux
Battery	3.6V 2600mAh 9.36Wh
Drop Resistance	Scanner 1.8m Cradle 0.9m
Programming Method	User Manual setting barcode , Windows ScanUtility configuration program
Operation Mode	Handcuff mode, Data collection mode, Deep sleep mode, Auto sensing mode
Sealing	IP65
Program Upgrade	Enabled by build-in flash memory
Cable Length	1.8m
Scanner Stand	Optional
Power Supply	Optional
Agency Listing	CE, FCC, ROHS, BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
