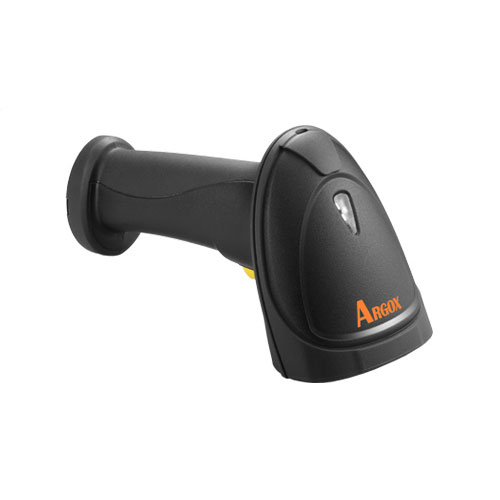

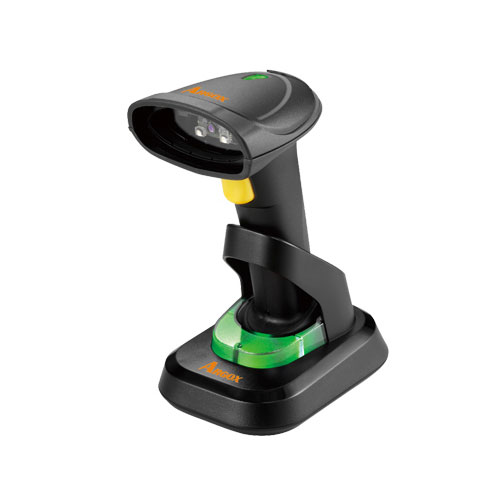

AI-6821

AI-6821, the very first model of Argox wireless 2D Imager Scanner for light-industry grade, eagle-eye grade reading engine that has enhanced performance on 4 mil labels for small IT-components, jewelry labels and so on. The transmission rate is also 3 times faster than the competitors within its class which it will greatly increase your efficiency and minimize your downtime.
AI-6821 has built in cross-line laser targeting design which allows you to work perfectly under ultra-white light and insufficient light source environment with on demand scanning accuracy. It will greatly reduce the user’s fatigue. AI-6821 is also the “free to use” device that allows the users to extend up to 100m in distance within it’s distance, so it maximizes the flexibility of the users.
● Transcendence of its class The rugged design of AI-6821 is certified by IP65 with drop rate resistance of 1.8 meter vertical distance to prevent any data loss and transmission. impossible to be break. The enhanced alert beep has dynamic setting that fits your working environment even under high-noise condition and it also provides vibration alert.
● Accuracy and Precision The era of Big Data is coming, AI-6821 comes with DataMagic data editing software to enhance your usability. It takes no time to complete the setting with the user-friendly UI design; you will be able to complete the data analysis whenever you want. You no longer will need to spend additional resource on SI companies for job like this!

Light Source	625nm visible red LED
Image Sensor	752*480 Area Imager
Depth of Field	AI-6821:Code 39 5mil 43-143mm, EAN 13mil 37-358m, QR code 8mil 67-110mm, QR code 20mil 37-320mm, PDF 417 13mil 22-250mm, DataMatrix 15mil 32-280mm. AI-6821HD:Code 39 3mil 25-75mm, Code 39 5mil 25-105mm, EAN 13mil 45-150mm, QR code 8mil 30-80mm, QR code 20mil 35-160mm, PDF 417 13mil 25-115mm, DataMatrix 15mil 30-130mm.
Resolution	AI-6821: 4mil (Code 39). AI-6821HD: 3mil (Code 39)
Print Contrast Ratio (minimum)	25%
Decode Capability	Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5 (DTF), EAN-13, EAN-8, Interleved 2/5, ISBT-128, Italian Pharmacode ( code 32), Korean 3 of 5, MSI plessey, UPCA, UPCE, UPC-E1, UPU FICS Postal, US Planet, US POSTNET, USPS, Australian Post, Japan Post, KIX Post, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), Aztec Code, Data Matrix, MaxiCode, Micro QR, QR, OCR
Wireless Communications	BT class1 Version 2.1+EDR 100 meters range
Communication Interface	USB, RS-232
Scan Indicators	LED, Beeper and Vibrator
Scanner Dimensions	94mm x 76mm x 158mm
Cradle Dimensions	130mm x 88mm x 95mm
Input Voltage	5V+/- 5%
Operating Temperature	-20°C to 55°C (32°F to 131°F) (Charging 0°C to 40°C)
Storage	-20°C to 70°C (-4°F to 158°F)
Humidity	5% to 95% related humidity, non-condensing
Ambient Light	Up to 100,000 lux
Battery	Rechargeable 3.7 V 2200mAh, li-ion Battery
Drop Resistance	Scanner:1.8m, Cradle: 0.9m
Programming Method	User Manual setting barcode , Windows ScanUtility configuration program
Operation Mode	Handcuff mode, Data collection mode, Sleep mode, Auto sensing mode
Sealing	IP65
Program Upgrade	Enabled by build-in flash memory
Cable Length	1.8m
Scanner Stand	Optional
Power Supply	Optional
Agency Listing	CE, FCC, ROHS, BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
