AS-9400BT
product description
• Various codes support, including GS1 Data Matrix (UDI) in healthcare
• Resolution: 3mil (1D code 39); 7.5mil (QR code)

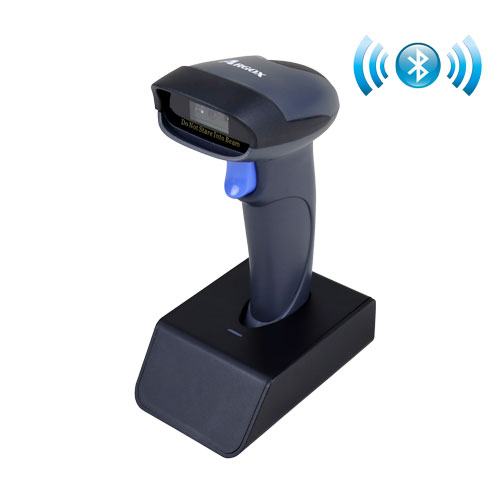

• Bluetooth dual mode (BLE & Classic BT5.0+EDR)

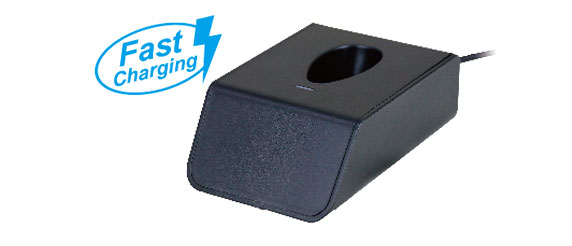

• Full charged in 4 hours (charging by power adapter)

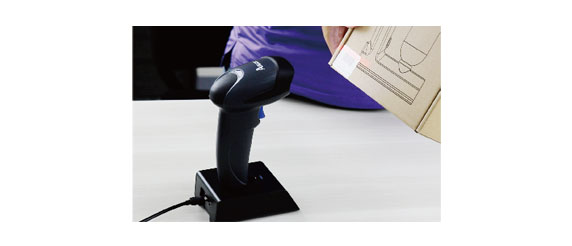

• Auto-sensing support (automatically switch on the cradle)
• Easy to connect scanner with any Android/iOS/PC device
• Resolution: 3mil (1D code 39); 7.5mil (QR code)
• Bluetooth dual mode (BLE & Classic BT5.0+EDR)
• Full charged in 4 hours (charging by power adapter)
• Auto-sensing support (automatically switch on the cradle)
• Easy to connect scanner with any Android/iOS/PC device
-

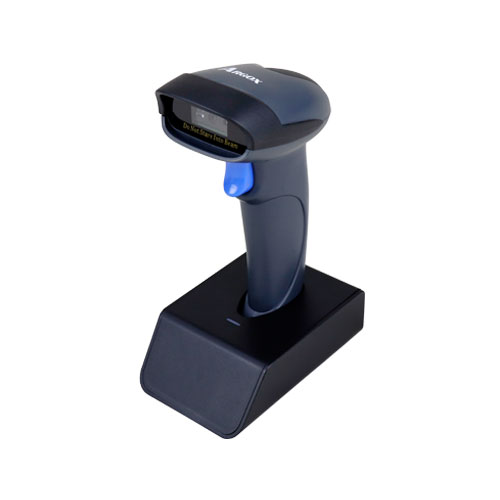

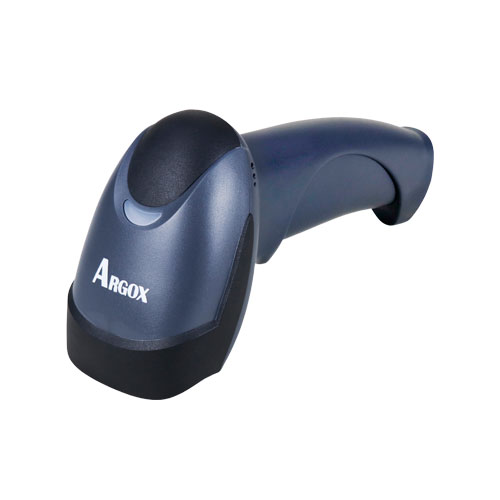

AS-9400BT, an ideal Bluetooth 2D barcode scanner to fit variety of applications.
1. Various codes support, including GS1 Data Matrix (UDI) in healthcare
2. Resolution: 3mil (1D code 39); 7.5mil (QR code)
3. Bluetooth dual mode (BLE & Classic BT5.0+EDR)
4. Full charged in 4 hours (charging by power adapter)

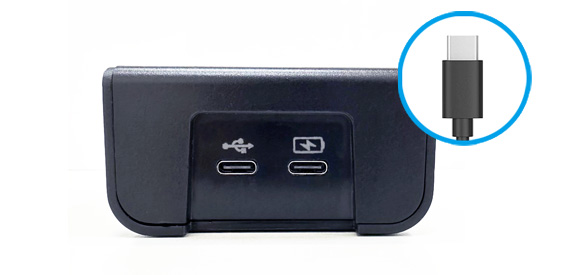

5. Using Type-C cable can quickly replacement of cable loss or damage temporarily in local.
6. Auto-sensing support (automatically switch on the cradle)
7. Easy to connect scanner with any Android/iOS/PC device
Application- Retail
- Manufacturing
- Transportation & Logistics
- Library & Office
- Healthcare
-
Light Source 630nm visible red LED Image Sensor 640x 480 array image sensor Depth of Field Code 39 40mm~165mm(5mil)
Ean-13 50mm~365mm(13mil)
Data Matrix 35mm~115mm(10mil)
QR Code 35mm-145mm (15mil)
PDF 417 45mm-115mm(6.67mil)Resolution 1D ≥ 3 mil (Code 39) 2D ≥ 7.5mil (QR Code) Print Contrast Ratio (minimum) ≧25% Decode Capability 1D: Code11, Code39, Code93, Code32 (Pharmaceutical), Code128 (GS1-128), ISBT-128, Codabar (NW7), Interleaved 2of 5, Industrial 2 of 5, Discrete 2 of 5 (DTF), IATA 2 of 5, Matrix 2of 5, EAN/JAN-13, plus supplement, EAN/JAN-8, plus supplement, UPCA, plus supplement, UPCE, plus supplement, UPCE1, ISBN (Bookland), MSI PlesseyCode, GS1 Databar RSS14, GS1 Databar Limited, GS1 Databar Omnidirectional,GS1 Databar Expanded
2D: GS1 Databar Expanded Stacked, GS1 Databar RSS14 Stacked, PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C/CC-B, CC-C), Aztec, MaxiCode, DataMatrix/ECC 200, QR Code, Micro QR Code, GS1 DataMatrixWireless Communications Bluetooth Dual mode (BLE & Classic BT5.0+EDR) Communication Interface USB-HID, USB-Virtual COM, RS-232 Scan Indicators LED, Beeper Scanner Dimensions 90mm x 60mm x 160mm Cradle Dimensions 110mm x 74mm x 36mm Input Voltage 5V±5% Operating Temperature -10°C-45°C Storage -20°C-60°C Humidity 5%-85% Ambient Light Up to 100000 lux Battery 2000mAh Drop Resistance 1.5m (No malfunction) Programming Method Standard: User Manual setting barcode Operation Mode Tigger mode, Auto sensing mode, Continuous mode Sealing IP41 Program Upgrade Enabled by build-in flash memory (Field Upgrade) Cable Length 1.5m Scanner Stand N/A Power Supply N/A Agency Listing CE, FCC, BSMI, RoHS, etc. Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
AS-9400BT Brochure EN
AS-9400BT Brochure EN V1.3
-
AS-9400BT Brochure TW
AS-9400BT Brochure TW V1.3
-
-
-
AS-9400BT User Guide EN
AS-9400BT User Guide EN V2.3
-
AS-9400BT User Guide TW
AS-9400BT User Guide TW V1.9
-
AS-9400BT Quick Start Guide EN
AS-9400BT Quick Start Guide EN V1.0
-
-
-
Bluetooth Address Barcode for paring between scanner and cradle
Bluetooth Address Barcode for paring between scanner and cradle
for AS-9400BT
-
-
