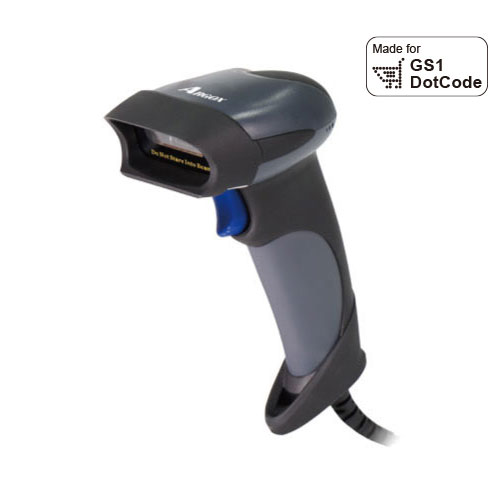

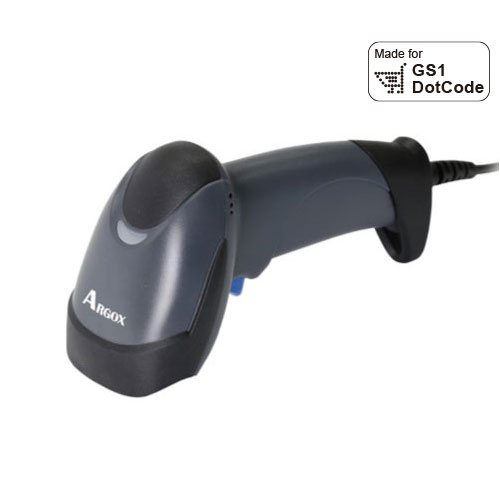

AS-9400DC
product description
• 1280 x 800 array image sensor
• Resolution: 1D: ≧4mil(Code39) 2D: ≧9mil
• New European Tobacco (GS1 DotCode) reading available
• New European Pharmacy (GS1 Data Matrix) reading available
• Small-sized QR code reading available, minimum is 0.7*0.7cm
• Depth of Field: 60~200mm (Code 128, 10mil); 60~200mm (Code 128, 18bytes); 40~120mm (QR code, 10mil); 50~140mm (DM code, 15mil); 50~250mm(QR 18bytes)
• Drop resistance: 1.5 meters onto the concrete
• Auto-sensing (presentation) mode available
• Resolution: 1D: ≧4mil(Code39) 2D: ≧9mil
• New European Tobacco (GS1 DotCode) reading available
• New European Pharmacy (GS1 Data Matrix) reading available
• Small-sized QR code reading available, minimum is 0.7*0.7cm
• Depth of Field: 60~200mm (Code 128, 10mil); 60~200mm (Code 128, 18bytes); 40~120mm (QR code, 10mil); 50~140mm (DM code, 15mil); 50~250mm(QR 18bytes)
• Drop resistance: 1.5 meters onto the concrete
• Auto-sensing (presentation) mode available
-
AS-9400DC, best choice for Entry-level 2D imager

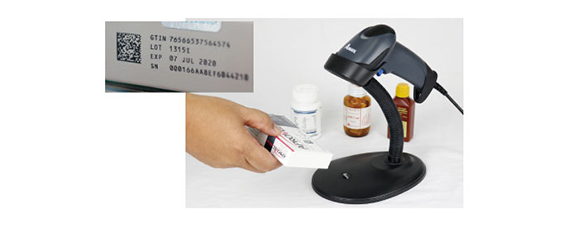

1. New European Pharmacy (GS1 Data Matrix) reading available

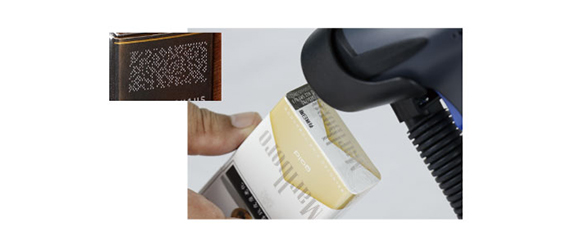

2. New European Tobacco(GS1 DotCode) reading available
3. Multiple language keyboard support
4. Resolution:
1D>=3mil;2D=7.5mil(AS-9400)
1D>=4mil;2D>=9mil(AS-9400DC)
5. Drop resistance: 1.5 meters onto the concrete

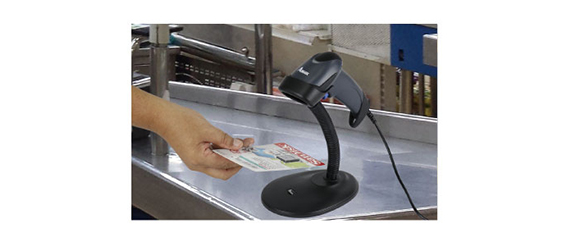

6. Auto-sensing (presentation) mode available
Application- Retail
- Manufacturing
- Transportation & Logistics
- Library & Office
- Healthcare
-
Light Source 630nm visible red LED Image Sensor 1280 x 800 array image sensor Depth of Field Code 128 10mil 18bytes: 60~200mm
QR 10mil 160bytes: 40~120mm
DM 15mil 100bytes: 50~140mm
QR 18bytes: 50~250mmResolution 1D: ≧4mil (Code 39) 2D: ≧9mil (QR code) Print Contrast Ratio (minimum) ≧20% Decode Capability 1-D: Code11, Code39, Code93, Code32 (Pharmaceutical), Code128 (GS1-128), ISBT-128, Codabar (NW7), Interleaved 2of 5, Industrial 2 of 5, Discrete 2 of 5 (DTF), IATA 2 of 5, Matrix 2of 5, EAN/JAN-13, plus supplement, EAN/JAN-8, plus supplement, UPCA, plus supplement, UPCE, plus supplement, UPCE1, ISBN (Bookland), MSI Plessey Code, GS1 Databar RSS14, GS1 Databar Limited, GS1 Databar Omnidirectional, GS1 Databar Expanded 2-D: GS1 Databar Expanded Stacked, GS1 Databar RSS14 Stacked, PDF417, Micro PDF417, Composite Codes (CC-A, CC-B, CC-C/CC-B, CC-C), Aztec, MaxiCode, DataMatrix/ECC 200, QR Code, Micro QR Code, New European Pharmacy (GS1 Data Matrix), New European Tabacco (GS1 DotCode) Wireless Communications N/A Communication Interface USB-HID, USB-Virtual COM Scan Indicators LED, Beeper Scanner Dimensions 90mm x 60mm x 160mm Cradle Dimensions N/A Input Voltage 5V±5% Operating Temperature 0°C to 50°C Storage -20°C to 80°C Humidity 5% to 95% relative humidity (non-condensing) Ambient Light Up to 100000 lux Battery N/A Drop Resistance 1.5 meters onto concrete Programming Method User's manual; RS232 Serial Command Operation Mode Trigger mode; Auto sensing mode; Continuous mode Sealing IP41 Program Upgrade Enabled by build-in flash memory (Field Upgrade) Cable Length 1.8m Scanner Stand Optional Power Supply N/A Agency Listing CE, FCC, BSMI, RoHS, etc. Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
AS-9400DC Brochure EN
AS-9400DC Brochure EN V2.1
-
AS-9400DC Brochure ES
AS-9400DC Brochure ES V2.1
-
AS-9400DC Brochure TW
AS-9400DC Brochure TW V2.1
-
-
-
AS-9400DC User Manual EN
AS-9400DC User Manual EN V1.4
-
AS-9400DC User Manual TW
AS-9400DC User Manual TW V1.1
-
AS-9400DC Quick Start Guide EN
AS-9400DC Quick Start Guide EN
-
-
-
AS-9400DC Virtual COM Driver
USB Virtual COM driver for Windows
-
