product description
• Microsoft Windows CE5.0
• Sharp and bright color TFT QVGA display with touch screen.
• Ergonomic, compact, robust and lightweight.
• Bluetooth, 802.11b/g technology.
• 1.2m(4 ft) drop resistance.
• IP54 protection class.
• User-accessible memory slot.
• Quick attach handle.
• Extremely long operation hours.

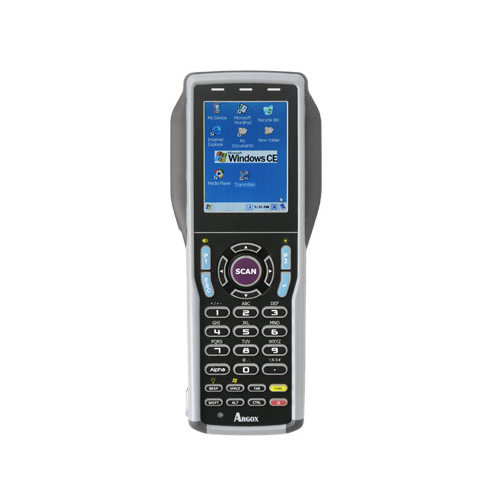

  • The PT-60 Mobile Computer is a powerful wireless handheld computing device based on the Windows CE® operating system and a fast CPU. The ergonomic, compact and durable PT-60 features a bright 2.4-inch TFT 320 x 240 QVGA display with touch screen, a high performance CCD barcode scan engine, wireless communication support including Bluetooth and high speed wireless LAN 802.11b/g, and external USB and RS-232 interfaces. Memory capability includes 128MB DRAM, 128 MB Nand Flash, and one standard SD card slot for expanded memory space demands.
    Lightweight at only 250g, the ergonomic PT-60 has an optional pistol grip for ease of scanning. Shockproof, dustproof, and waterproof in compliance with IP54 standards the PT-60 is built for rough environments. For generic applications, the PT-60 comes with a standard, comprehensive software developer kit (SDK) that supports a variety of I/O driver APIs, such as communications, Auto ID reading, DI/O control, and others. Accessories include a charging and communication cradle and cable, a pistol grip, and a four slot charging cradle. The PT-60 is suitable for a wide variety of applications including retail, distribution, warehouse, and logistics.
    PT-60 mobile computer has  received the 2010 Taiwan Excellence Award, the highest accolade presented to  Taiwan products. It was judged on criteria that included R&D, Design,  Quality, and Marketing. Won this award is just an extra evidence that PT-60 does deliver world-class quality and outstanding performance for a broad range of  data collection applications.
  •  External I/O Interface USB / RS-232(4 Wires)
     Expansion Slot Micro SD card
     OS Microsoft Windows CE 5.0
     CPU ARM9 Core 266MHZ
     RAM 128MB Mobile DDRAM
     ROM 128MB Nand Flash
     Display 2.4" LCD TFT Transmissive, 240 x 320 QVGA 65K colors with Touch panel
     Indicators LED, Beeper and Vibrator
     Keypad 29 keys
     Terminal Dimensions 168.8mm(L) x 70.1mm(W) x 34mm(H)
     Terminal Weight 250g(battery included)
     Image Sensor CCD
     Decode Capability Auto discrminates all standard one-dimension barcodes; including GS1 databar. Other symbologies can be ordered optionally.
     Resolution 5mil
     Depth of Field 600mm (code 39, 20mils, PCS 90%)
     Scan Rate 400 scans/second
     Communication Interface USB / RS-232(4 Wires)
     Operating Temperature -10°C ~ 50°C(14°F ~ 122°F)
     Storage Temperature -20°C ~ 70°C( -4°F ~ 158°F)
     Humidity Operating: Non-condensed 90%
     Drop Resistance 1.2 meters to concrete(Handset), 0.9 meters to concrete(Cradle)
     Sealing IP54
     Electrostatic Discharge (+/- 15 KV) air discharge / (+/- 8 KV) direct discharge
     Software PT FileManager, ARGOX_DAEMON
     Program Language C language, basic language
     Developing Tools embedded Visual C++ 4.0, Visual Studio 2005, Windows CE SDK, Scanner Configuration Utility
     Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 5V, 3A
     Battery 1) Data collector: Rechargeable 3.7V 1950mAh Li-Polymer Battery 2) Optional Pistol Grip: Rechargeable 3.7 V 4400mAh, Li-ion Battery
     Cradle Device cradle with single slot battery compartment, Four-slot charger
     Accessory ● Communication and Charging Cables ● Charging & Communication Cradle ● Pistol Grip, Four Slot Charging Base, Holster
     Wireless Communications WPAN: Bluetooth Class 2, version 1.2 WLAN: 802.11b/g/n
     Agency Listing CE, FCC, RoHS, WEEE
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
