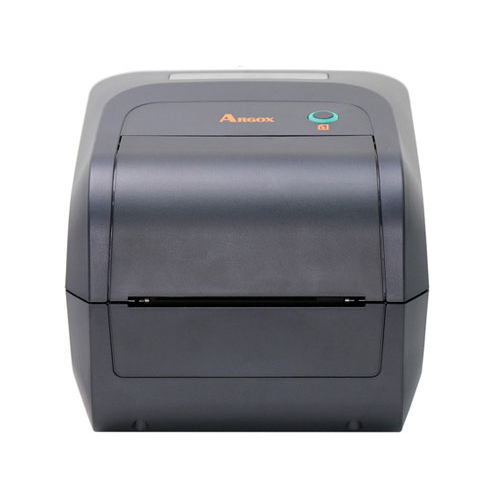

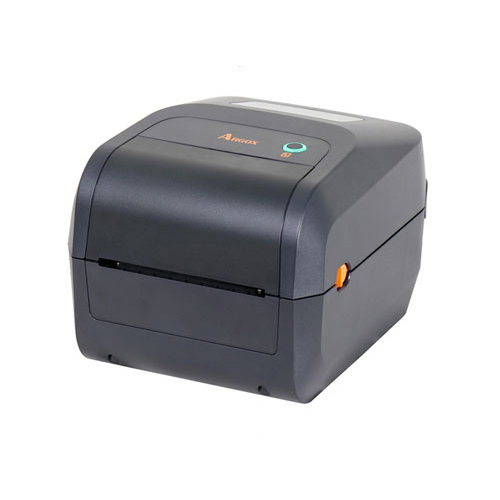

AL-4210

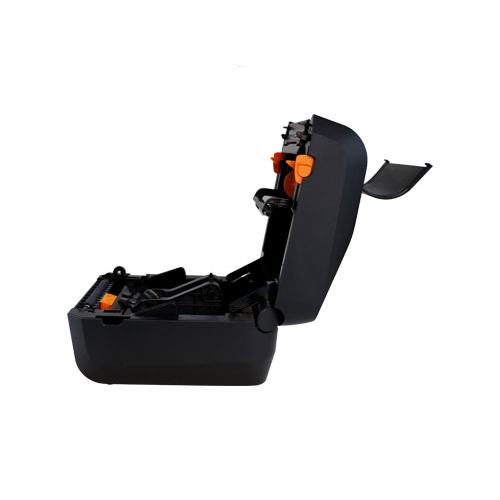

• 全新贝壳式设计,易于安装,AL系列采用全新贝壳式设计,不仅易于开关上盖,安装纸卷与碳带也更加方便。
• 打印速度升级到每秒7吋,最高速度可以达到每秒7吋,即使在最高速打印的状态,依然保有完美的打印质量。

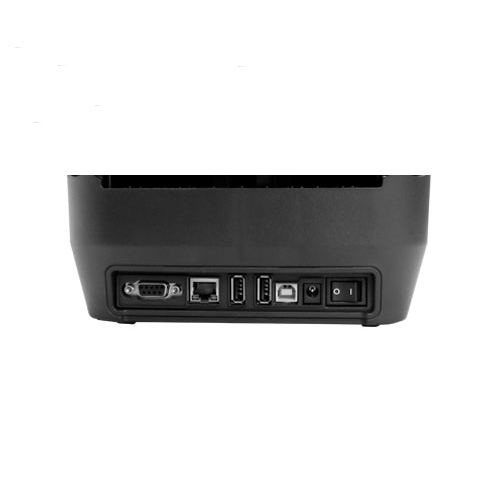

• 多样化连接接口,内建以太网络,USB host,USB device,RS-232串行埠,并且可选配Wi-Fi、Bluetooth v4.2无线网络。
-

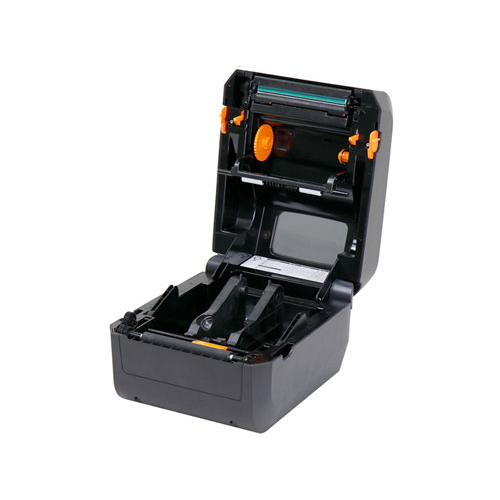

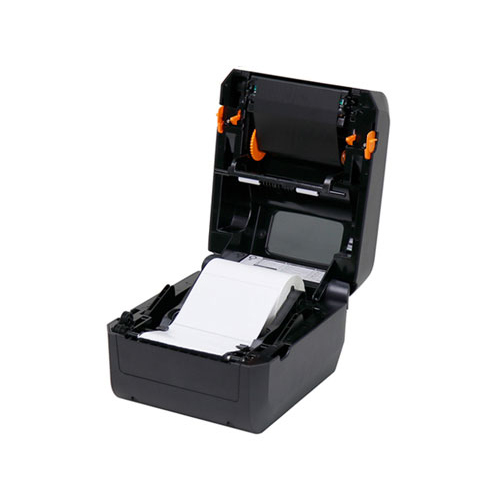

AL-4210系列具有特殊的翻盖设计,使用户可以简单地打开盖子并装入碳带和标签。具有7 ips的打印速度,即使以最高速度打印,仍可保持完美的打印质量. AL系列具有内置以太网,双USB主机,USB设备,RS-232,并可通过Wi-Fi,蓝牙v4.2进行扩展。
-
打印方式 热感式 & 热转式 分辨率 203 dpi(8 dots/mm) 最大打印速度 7 ips 最大打印长度 100”(2540 mm) 最大打印宽度 4.25” (108 mm) 内存 32 MB SDRAM, 16MB Flash ROM (USB 随身碟可储存最大至 32GB) 中央处理器 32 位RISC 微处理器 感测装置 纸张反射式传感器x 1(可调整) & 纸张穿透式传感器x 1(固定,6.27mm偏移) 操作接口 LED指示灯x 2 (三种灯色) ,按键x 1 通讯接口 USB device, RS-232, Ethernet, USB host x 2 字型 5种国际标准字型(1.25mm~ 6mm),最大可达 24x24,四方向旋转0°~270°,可由软件下载Windows True Type 字型 无线网络安全 N/A 一维条形码 PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars 二维条形码 PPLA/PPLB/PPLZ: MaxiCode、 PDF417、 Data Matrix (ECC 200 only) 、 QR code、Composite Codes、Aztec 图片格式 PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI 指令集 PPLA, PPLB, PPLZ 卷标编辑软件 BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) 软件工具 Printer Tool 驱动程序 Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver 纸张种类 纸卷式、标签式(间距纸、连续纸、折迭纸、票券、吊牌...等) 纸张规格 最大宽度:4.65"(118mm)。 最小宽度:0.8"(20mm)。 纸张厚度:0.0024"~0.008" (0.06mm~0.2mm)。 纸滚动条心1”/1.5”(25.4/38mm)可容纸卷外径5”(127mm) 纸滚动条心0.5”(127mm)可容纸卷外径4.5”(115mm) 经销商选配外挂纸架:纸卷外径(OD):8",纸滚动条心:1"/3" 碳带规格 宽度:1”~4.33”(25.4mm~110mm) 最大长度:110m 轴心内径:0.5”(12.7mm) 轴心宽度:4.33”(110mm)(开缺口) 适用种类:蜡质、半蜡半树脂、全树脂(内卷式和外卷式碳带皆适用) 防摔系数 N/A 条形码打印机尺寸 209mm(宽) x 179.2mm(高) x 266mm(深) 条形码打印机重量 2.2 kgs 电源供应 切换式电源供应器,交流输入100~240V, 50~60Hz 直流输出 24V, 2.5A 电池 N/A 环境条件 操作环境:41˚F~104˚F (5˚C~40˚C). 相对湿度:30%~90% 储存环境:-4˚F~122˚F (-20˚C~50˚C). Real Time Clock N/A 标准配件 N/A 选购配件 全切裁纸器、半切裁纸器、剥纸器、WLAN、Bluetooth v4.2、外挂纸架 安规认证 CB, CE, FCC, cTUVus, Energy Star, RoHS, BSMI, RCM, CB, BIS, KCC 注意事项 * 立象科技保留增加和修改规格的权利,恕不另行通知。 请联络立象科技业务代表以获取最新规格。 -
-
-
AL Series 快速安装指南
AL Series 快速安装指南 V1.1
-
-
-
BarTender 2021 R8
条码打印软件,所有型号适用
支持 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
条码打印软件,所有型号适用
支持Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
BarTender UL 10.1
条码打印软件
所有型号适用, 限Windows XP操作系統 -
ArgoBar Pro V2.16
条码打印软件
支持Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
支持语言: 英文, 简体中文, 繁体中文 Argobar Pro 支持 ODBC 数据库连接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
Printer Tool V1.1.0
打印机设定软件
-
Command Library V4.12
Command Library V4.12 软件开发工具供专业用户. 支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)
-
Argox SDK V1.4.0
SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.
-
iLabelPrint V1.03 Google Play
iLabelPrint是Argox针对行动打印需求开发的APP,“Android” 或 “iOS” 的智能型手机、笔记本电脑与平板计算机可透过Blurtooth或LAN,WiFi和USB(仅适用于支持OTG的Android设备)连接Argox打印机使用。
-
iLabelPrint V1.03 App Store
iLabelPrint是Argox针对行动打印需求开发的APP,“Android” 或 “iOS” 的智能型手机、笔记本电脑与平板计算机可透过Blurtooth或LAN,WiFi和USB(仅适用于支持OTG的Android设备)连接Argox打印机使用。
-
iLabelPrint V1.03 APK
iLabelPrint是Argox针对行动打印需求开发的APP,“Android” 或 “iOS” 的智能型手机、笔记本电脑与平板计算机可透过Blurtooth或LAN,WiFi和USB(仅适用于支持OTG的Android设备)连接Argox打印机使用。
-
-
-
Argox Seagull 打印机驱动程序 2023.2_M-1
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
所有型号适用 -
Argox Seagull 打印机驱动程序 XP
所有型号适用,限Windows XP操作系统
-
Argox Linux 打印机驱动程序 V1.8.0 32-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox Linux 打印机驱动程序 V1.8.0 64-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
XP打印机驱动(200点分辨率)
DR200 V5.05
-
Argox macOS 打印机驱动程序 V1.8.0
Argox macOS 打印机驱动程序 V1.7.0 forOS X EI Capitan (Version: 10.11.6) ~ macOS Monterey (Version: 12.2)
-
Argox RPi 打印机驱动程序 V1.8.0 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi 打印机驱动程序 V1.8.0 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
-
-
AL series 旋刀裁纸器快速安装指南
AL series 旋刀裁纸器快速安装指南 V1.3
-
AL series 剥纸器快速安装指南
AL series 剥纸器快速安装指南 V1.3
-
AL series WLAN 快速安装指南
AL series WLAN 快速安装指南 V1.3
-
AL series Bluetooth 快速安装指南
AL series Bluetooth 快速安装指南 V1.3
-
