CP-880

产品说明
型号列表:CP-880
• CP系列拥有小巧的体积和外型设计,节省空间,而且适合各类标签打印需求。
• 更大的标签与碳带兼容性,可容纳300公尺的碳带,无须任何设定即可使用内卷/外卷式碳带,内卷/外卷式标签。
• 多样化连接接口,内建以太网络,USB host,USB device,RS-232串行埠,并且可选配Wi-Fi、Bluetooth v2.1无线网络。
标签 :
  • 条形码打印机-CERNER认证
  • 条形码打印机-打印宽度:4吋
  • 条形码打印机-碳带长度:300公尺
  • 为了满足客户对节省空间的打印机的需求,立象科技开发了新型热转式条形码打印机CP系列。它适用于狭小的空间,还具有稳定性和高性能。CP系列是一款高打印速度的紧凑型台式条形码打印机;它具有6ips和203和300dpi两种分辨率以满足客户对高速和高质量的需求。CP条形码打印机提供用户友善的设计;新的机械设计可以将标签自动设置到中心。使用透射式和反射式传感器,可以确保卷标位置正确。 CP系列可以自动检测碳带卷边黑边或黑边。凭借绿色,橙色和红色三种不同的状态指示器,客户可随时了解最新的打印机情况。 CP内置以太网,USB主机,USB设备,RS-232连接接口也可以升级到Wi-Fi,蓝牙v2.1,无论有线和无线环境都可以使用。 CP系列并具有Cerner认证。
    螢幕擷取畫面 2021-11-18 170714

  •   打印方式 热感式 & 热转式
      分辨率 300 dpi (12 dots/mm)
      最大打印速度 4 ips
      最大打印长度 50”(1270mm)
      最大打印宽度 4.16”(105.7mm)
      内存 32 MB SDRAM, 16MB Flash ROM (USB 随身碟可储存最大至 32GB)
      中央处理器 32 位RISC 微处理器
      感测装置 纸张反射式传感器x 1(可调整) & 纸张穿透式传感器x 1(固定,6.27mm偏移)
      操作接口 LED指示灯x 2 (三种灯色) ,按键x 1

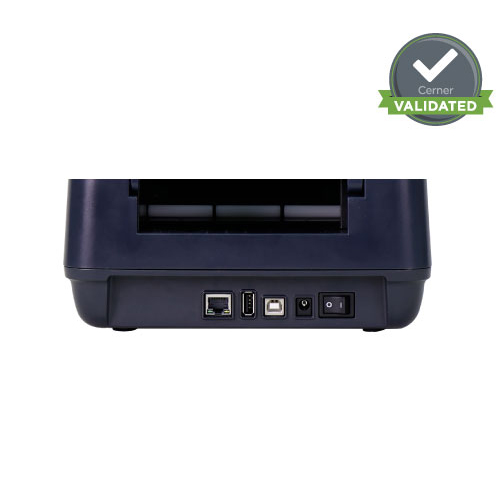

      通讯接口 USB device, RS-232, Ethernet, USB host
      字型 5种国际标准字型(1.25mm~ 6mm),最大可达 24x24,四方向旋转0°~270°,可由软件下载Windows True Type 字型
      无线网络安全 N/A
      一维条形码 PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS)
    PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
    PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
      二维条形码 PPLA/PPLB/PPLZ: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes、Aztec
      图片格式 PPLA: PCX, BMP, IMG, HEX,GDI
    PPLB: PCX, BMP, Binary raster, GDI
    PPLZ: GRF, Hex, GDI
      指令集 PPLA, PPLB, PPLZ
      卷标编辑软件 BarTender® from Seaguall Scientific
    Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      软件工具 Printer Tool
      驱动程序 Argox Seaguall Driver (Windows XP/Vista/Win7/Win8/Win10)
    Argox Linux Printer Driver
    Argox macOS Printer Driver
    Argox RPi Printer Driver
      纸张种类 纸卷式、标签式(间距纸、连续纸、折迭纸、票券、吊牌...等)
     纸张规格 最大宽度:4.65"(118mm)。 最小宽度:0.88"(22.4mm)。 纸张厚度:0.0024"~0.0075" (0.06mm~0.19mm)。 纸滚动条心1”/1.5”(25.4/38mm)可容纸卷外径5”(127mm) 经销商选配外挂纸架:纸卷外径(OD):8",纸滚动条心:1"/3"
      碳带规格 最大外径:1.6"~4.33"(40mm~110mm)。 最大长度:300m。 轴心内径:1"(25.4mm)或0.5"(12.7mm)。 适用种类:蜡质、半蜡半树脂、全树脂(内卷式和外卷式碳带皆适用)。
      防摔系数 N/A
      条形码打印机尺寸 220.6mm(宽) x 187.5mm(高) x 278.5mm(深)
      条形码打印机重量 2.4 kgs
      电源供应 N/A
      电池 N/A
      环境条件 操作环境:41˚F~104˚F (5˚C~40˚C). 相对湿度:0%~90%
    储存环境:-4˚F~140˚F (-20˚C~60˚C).
      Real Time Clock N/A
      标准配件 N/A
      选购配件 全切裁纸器、半切裁纸器、剥纸器、WLAN、Bluetooth v2.1、外挂纸架
      安规认证 CE, FCC, cULus, RoHS, BSMI, RCM, CB, BIS
      注意事项 * 立象科技保留增加和修改规格的权利,恕不另行通知。 请联络立象科技业务代表以获取最新规格。
    • BarTender 2022 R6

      条码打印软件,所有型号适用
      支持 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      条码打印软件,所有型号适用
      支持Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      条码打印软件
      所有型号适用, 限Windows XP操作系統

    • ArgoBar Pro V2.16

      条码打印软件
      支持Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      支持语言: 英文, 简体中文, 繁体中文 Argobar Pro 支持 ODBC 数据库连接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • Printer Tool V1.1.1

      打印机设定软件

    • Command Library V4.12

      Command Library V4.12 软件开发工具供专业用户. 支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.

    • iLabelPrint+ V2.1.2 Google Play

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 Android v7.0 以上 Blurtooth,LAN,WiFi 及 USB OTG 连线。

    • iLabelPrint+ V2.1.2 App Store

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 iOS 13 以上 Blurtooth,LAN,WiFi 连线。

    • iLabelPrint+ V2.1.2 Android APK

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 Android v7.0 以上 Blurtooth,LAN,WiFi 及 USB OTG 连线。
