WP-660

产品说明
型号列表:WP-660

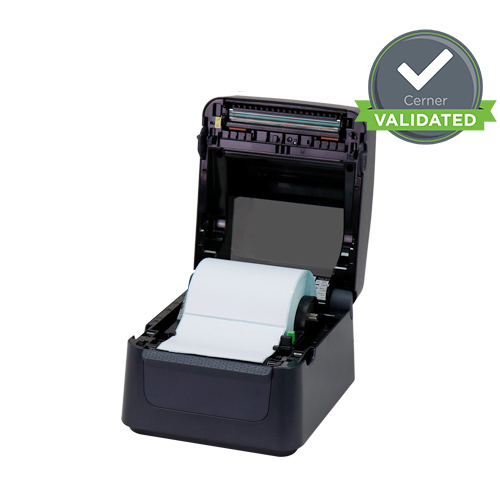

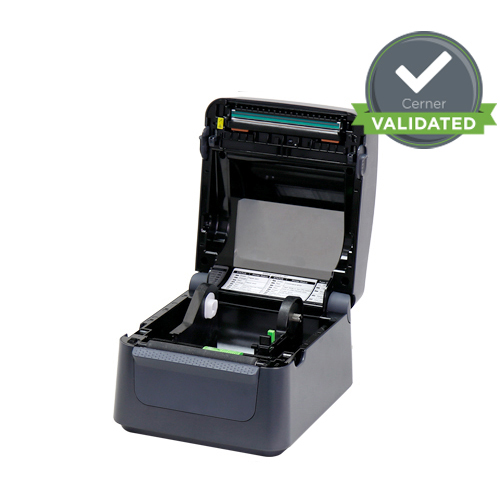

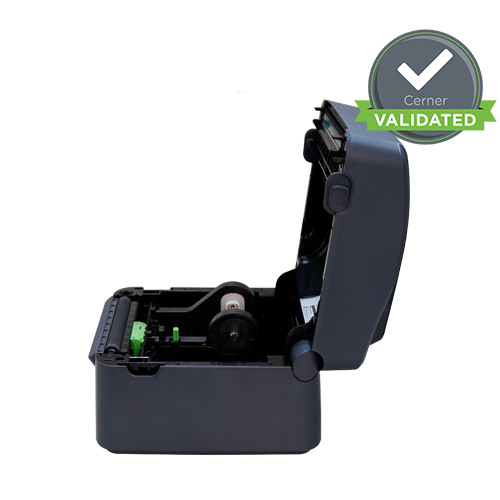

• WP系列采用全新贝壳式设计,不仅易于开关上盖,安装纸卷也更加方便。
• 小巧的体积,WP系列拥有小巧的外型设计,节省空间,而且适合各类标签打印需求。

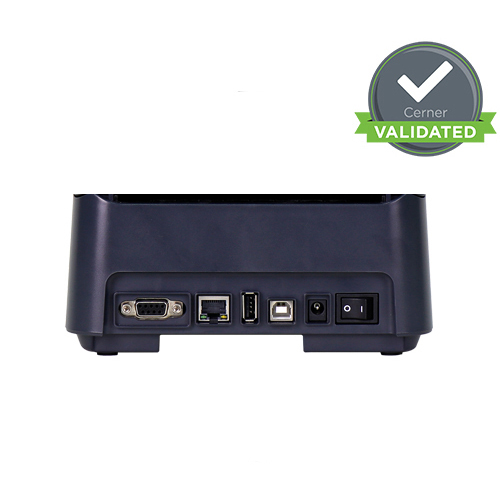

• 多样化连接接口,内建以太网络,USB host,USB device,RS-232串行埠,并且可选配Wi-Fi、Bluetooth v2.1无线网络。
标签 :
  • 条形码打印机-CERNER认证
  • 条形码打印机-打印宽度:4吋
  • 条形码打印机-热敏式条形码打印机
  • WP-660系列是立象推出的两款全新升级的专业热敏打印机, 外型时尚小巧,操作简易, 低噪音超高速的打印效率能满足物流、医疗、零售、餐饮票务航空等多个行业的打印需求。独创的新版打印设置工具"Printer Utility"凭借精心的外观设计和快速简便的操作方式
    为终端用户提共优秀的打印体验和精确通讯输出效果。并融合最新技术再高速打印稳定耐用经济环保等方面实现了全面提升,是您可靠的打印伙伴。
    螢幕擷取畫面 2021-11-18 170714
  •  打印方式 热感式
     分辨率 203 dpi(8 dots/mm)
     最大打印速度 up to 6 ips
     最大打印长度 最大999毫米, 最小8毫米
     最大打印宽度 4.25”(108mm)
     内存 32 MB SDRAM, 16MB Flash ROM (USB 随身碟可储存最大至 32GB)
     中央处理器 32 位RISC 微处理器
     感测装置 反射式感測器 ,穿透式感測器, 打印头抬起感測器
     操作接口 LED指示灯x 2 (三种灯色) ,按键x 1
     通讯接口 USB typeB端口、网口
     字型 PPLB/PPLZ内建字体及软字体
    WP-660 PPLZ可支持下载windows兼容平滑字体
     无线网络安全 N/A
     一维条形码 PPPLB: Code 39 Std. & Extended、UPC-A、UPC-E、UPC-Inter Leaved 2 to 5, Code 39 with check sum digit. Code 93,  EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、GS1 Data bar (RSS)

    PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
     二维条形码 PPLB:  MaxiCode, PDF417, Dara Matrix(ECC 200 only). QR code, Composite Codes , Aztec Barcode
    PPLZ:  MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec Barcode, Micro PDE417
     图片格式 PPLB: PCX , Binary Raster, BMP and GDI
    PLZ: GRF, Hex and GDI
     指令集 PPLB/PPLB/PPLZ
     卷标编辑软件 Windows(Win7/Win8/XP/Vista)
    BarTender®
     软件工具 Printer Tool
     驱动程序 Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
     纸张种类 热敏纸材质, 可应用在纸卷式标签间距纸. 连续纸或折迭纸. 票据. 挂牌等
     纸张规格 纸卷外径最大可达: 127豪米
    轴心尺寸: 25.4毫米或38毫米
    使用外挂纸架时轴心最大支持176.2毫米
    可使用203.2毫米纸卷
     碳带规格 N/A
     防摔系数 N/A
     条形码打印机尺寸 183.8mm(宽) x 166.7mm(高) x 226.2mm(深)
     条形码打印机重量 1.76 kgs
     电源供应 切换式电源供应器,交流输入100~240V~1.8A,50~60Hz 直流输出 24VDC, 2.5A
     电池 N/A
     环境条件 操作温度: 5˚C~40˚C, 25%~85%非冷凝, 存储温度: -20˚C~60˚C
     Real Time Clock N/A
     标准配件 N/A
     选购配件 裁刀、剥纸器、外挂纸架
     安规认证 CE, FCC, cULus, CCC, RoHS
     注意事项 * 立象科技保留增加和修改规格的权利,恕不另行通知。 请联络立象科技业务代表以获取最新规格。
    • BarTender 2022 R6

      条码打印软件,所有型号适用
      支持 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      条码打印软件,所有型号适用
      支持Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      条码打印软件
      所有型号适用, 限Windows XP操作系統

    • ArgoBar Pro V2.16

      条码打印软件
      支持Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      支持语言: 英文, 简体中文, 繁体中文 Argobar Pro 支持 ODBC 数据库连接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • Printer Tool V1.1.1

      打印机设定软件

    • Command Library V4.12

      Command Library V4.12 软件开发工具供专业用户. 支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.

    • iLabelPrint+ V2.1.2 Google Play

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 Android v7.0 以上 Blurtooth,LAN,WiFi 及 USB OTG 连线。

    • iLabelPrint+ V2.1.2 App Store

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 iOS 13 以上 Blurtooth,LAN,WiFi 连线。

    • iLabelPrint+ V2.1.2 Android APK

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 Android v7.0 以上 Blurtooth,LAN,WiFi 及 USB OTG 连线。
