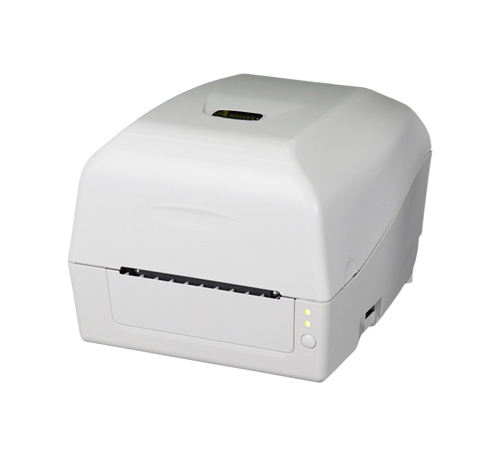

GT-820

产品说明
Models: GT-820

• Shell Suit 设计
• 简易安装
• 耐用设计
• 性能提升
标签 :
  • 条形码打印机-打印宽度:4吋
  • 条形码打印机-碳带长度:100公尺
  • 高性价比小卷芯碳带桌面打印机
    GX4-800


  •   打印方式 热敏式 & 热转式
      分辨率 203 dpi(8 dots/mm)
      最大打印速度 6 ips
      最大打印长度 100”(2540mm)
      最大打印宽度 4.25”(108mm)
      内存 32MB DRAM, 16MB Flash ROM
      中央处理器 32 位RISC 微处理器
      感测装置 纸张反射式传感器(可调整)/纸张穿透式传感器(固定.居中)
      操作接口 LED指示灯x 2,按键x 1
      通讯接口 USB接口,蓝芽v4.2(选配)
      字型 内建标准字符集 5种字母数字字体(1.25mm~6.0mm)
    最大
    可扩展至24x24 , 4方向0°~270°旋转,软件字型可下载 Windows True Type字体。
      一维条形码 PPLA: Code 39, UPC-A, UPC-E, Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 Random weight, Telepen, FIM, Interleaved 2 of 5 (Standard/with modulo 10 checksum / with human readable check digit/ with modulo 10 checksum & shipping bearer bars), and GS1 Data bar (RSS) PPLB: Code 39, UPC-A, UPC-E, Matrix 2 of 5, UPC-Interleaved 2 of 5, Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar, Postnet, Code128 subset A/B/C, Code 128 UCC (shipping container code) , Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on, UPCE 2/5 digit add-on, and GS1 Data bar (RSS) PPLZ: Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sum digit, MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey, GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, and Logmars
      二维条形码 PPLA: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite Codes PPLB: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite Codes PPLZ: QR code, PDF417, Data Matrix (ECC 200 only), and MaxiCode Composite Codes
      图片格式 PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI
      指令集 PPLA, PPLB, PPLZ
      卷标编辑软件 BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      软件工具 ArgoBar Pro, BarTender, Printer Tool, Font Utility, Command Library, Argox SDK
      驱动程序 Windows Driver for Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver
      纸张种类 纸卷式、标签式(间距纸、连续纸、折迭纸、票券、吊牌...等)
      纸张规格 最大宽度:4.65"(118mm) 最小宽度:0.8"(20mm) 纸张厚度:0.0024"~0.008"(0.06mm~0.2mm) 纸捲轴心0.5"(12.7mm)可容纸捲外径4.5"(114.3mm) 纸捲轴心1"(25.4mm)可容纸捲外径5"(127mm) 纸捲轴心1.5"(38.1mm)可容纸捲外径4.7"(120mm)
      碳带规格 宽度:1"~4.33"(25.4mm~110mm) 最大长度:300m 轴心内径:1"(25.4mm)或选配:0.5"(12.7mm),轴心宽度:2.6"(67mm) 适用种类:蜡基、混合基、树脂基碳带(内/外碳带皆适宜
      条形码打印机尺寸 宽 226mm x 高 188mm x 深 276mm
      条形码打印机重量 4.6 lbs (2.1 kg)
      电源供应 切换式电源供应器,交流输入100~240V,50~60Hz 直流输出 24V, 2.5A
      环境条件 操作环境:40˚F~100˚F (4˚C~38˚C). 相对溼度:10%~90% 储存环境:-4˚F~122˚F (-20˚C~50˚C)
      选购配件 全切半切闸刀,旋刀,剥纸器,外置纸架
      安规认证 CCC
      注意事项 * 立象科技保留增加和修改规格的权利,恕不另行通知。 请联络立象科技业务代表以获取最新规格。
    • BarTender 2022 R6

      条码打印软件,所有型号适用
      支持 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      条码打印软件,所有型号适用
      支持Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      条码打印软件
      所有型号适用, 限Windows XP操作系統

    • ArgoBar Pro V2.16

      条码打印软件
      支持Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      支持语言: 英文, 简体中文, 繁体中文 Argobar Pro 支持 ODBC 数据库连接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • Printer Tool V1.1.1

      打印机设定软件

    • Font Utility V3.04

      字型编辑工具
      Windows XP 及更新版本. 本工具软件可使用 true type font(TTF) 及打印机内字体. 支持 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Printer Utility V4.37

      供打印机额外设定使用. 支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 软件开发工具供专业用户. 支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.

    • iLabelPrint+ V2.1.2 Google Play

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 Android v7.0 以上 Blurtooth,LAN,WiFi 及 USB OTG 连线。

    • iLabelPrint+ V2.1.2 App Store

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 iOS 13 以上 Blurtooth,LAN,WiFi 连线。

    • iLabelPrint+ V2.1.2 Android APK

      iLabelPrint+ 是一款适用于移动设备的标籤设计和打印应用程式。 我们可以使用此应用程序轻松设计实用或专业的标籤,并使用连接的ARGOX标籤打印机将其输出到标籤纸上。支援 Android v7.0 以上 Blurtooth,LAN,WiFi 及 USB OTG 连线。
