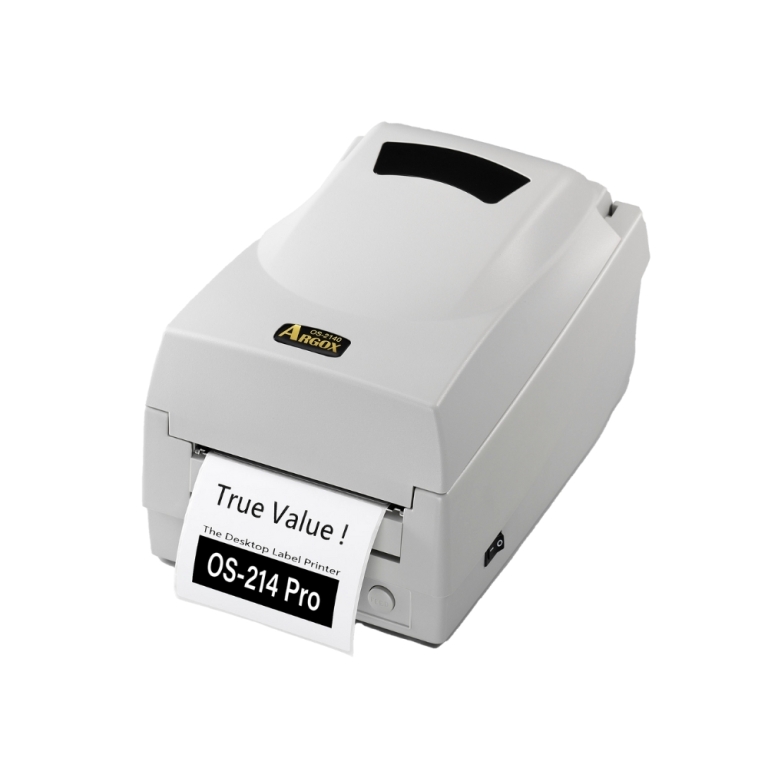

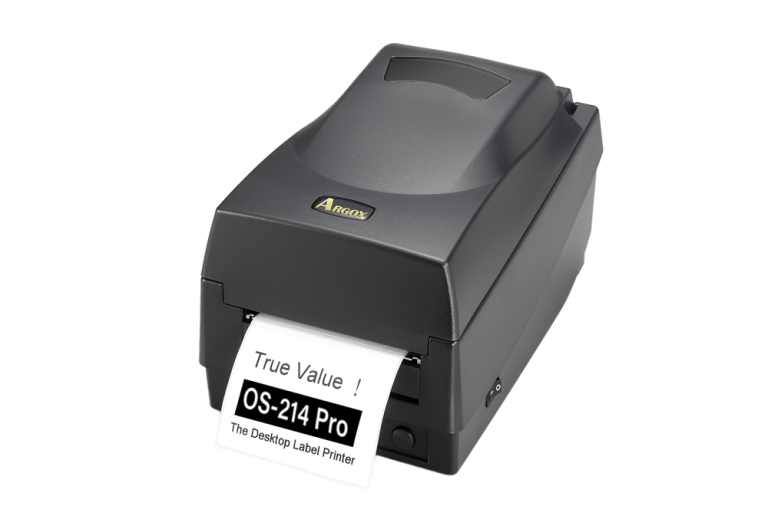

OS-214 Pro

The OS-214 Pro thermal transfer printer provides advanced functions and performance in a durable, space-saving design. A rapid print speed of 5 inches per second ensures increased efficiency and the large 128MB Flash and 128MB SDRAM onboard memory handles a broad range of applications. The USB interface ensures compatibility with a variety of computers and other devices. Other improvements include much quieter printing compared with other printers in this class.

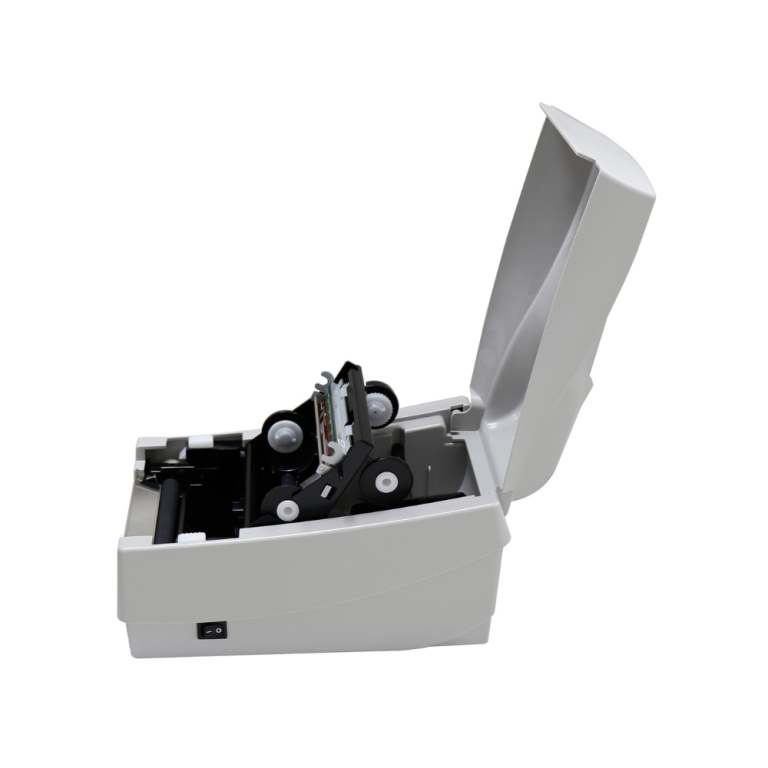

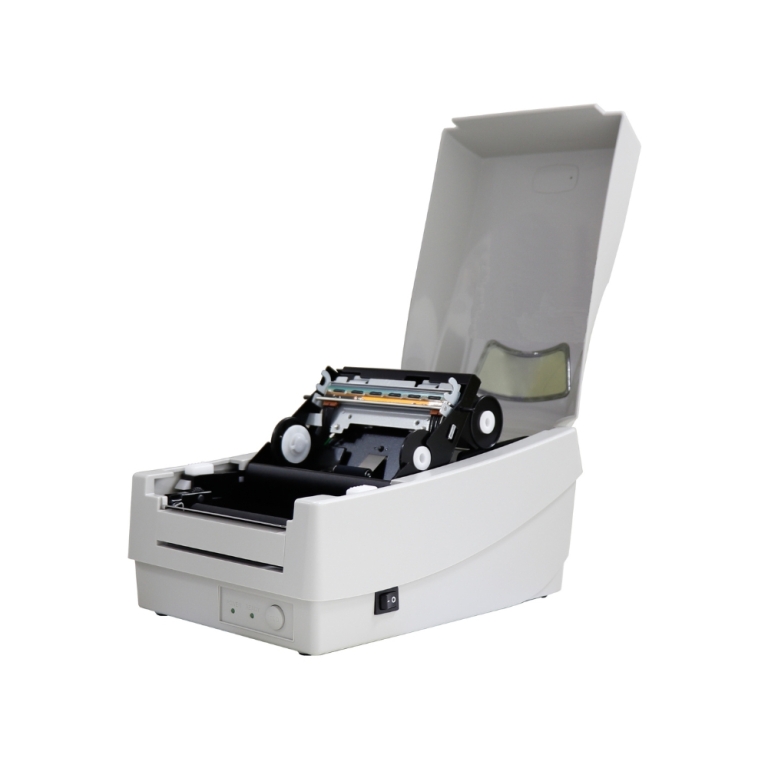

The printer's durable, high-impact ABS housing and all-metal print mechanism assure years of dependable performance. The printer supports 1D/GS1 Data Bar, 2D/Composite codes and QR barcodes.
Style, ease-of-use, space-savings, price, and printing performance are what define the new OS-214 Pro thermal transfer printer.

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	203 dpi(8 dots/mm)
Printing Speed	Max. 5 ips
Printing Length	Max. 100”(2540mm)
Printing Width	Max. 4.16”(105mm)
Memory	128MB SDRAM, 128MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective

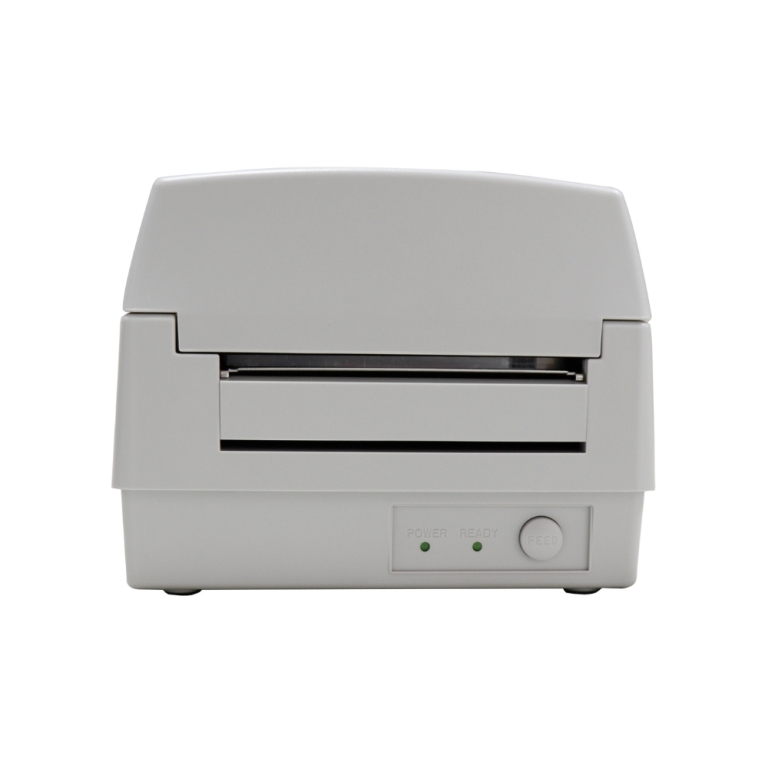

Operation Interface	LED Indicator x 2, Button(Feed) x 1

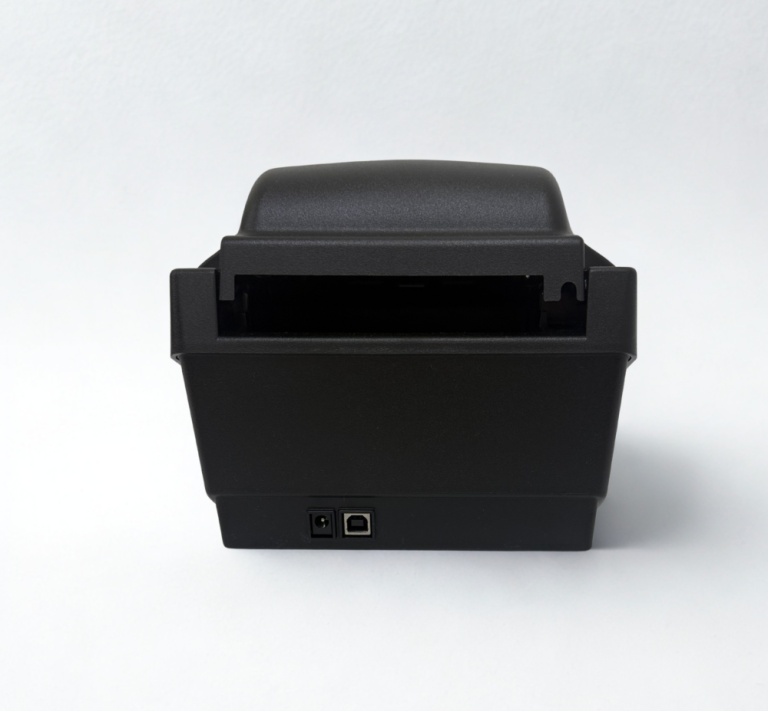

Communication Interface	USB
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font GB 18030 Standard (Chinese coded character set) support
Wireless Security	N/A
1D Barcodes	PPLA: Code 39, UPC-A, UPC-E, Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 Random weight, Telepen, FIM, Interleaved 2 of 5 (Standard/with modulo 10 checksum / with human readable check digit/ with modulo 10 checksum & shipping bearer bars), and GS1 Data bar (RSS) PPLB: Code 39, UPC-A, UPC-E, Matrix 2 of 5, UPC-Interleaved 2 of 5, Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar, Postnet, Code128 subset A/B/C, Code 128 UCC (shipping container code) , Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on, UPCE 2/5 digit add-on, and GS1 Data bar (RSS) PPLZ: Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sum digit, MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey, GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, and Logmars
2D Barcodes	PPLA: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite Codes PPLB: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite Codes PPLZ: QR code, PDF417, Data Matrix (ECC 200 only), and MaxiCode Composite Codes
Graphics	PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, BMP, Binary Raster, and GDI PPLZ: GRF, Hex and GDI
Emulation	PPLA, PPLB, PPLZ
Software-label Editing	Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software-utility	Printer Tool, Font Utility
Driver tools	Windows Driver for Windows Vista/Win7/Win8/Win10/Win11, LINUX Driver, macOS Driver, Raspberry Pi Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.33” (110mm). Min. width: 1” (25.4mm). Thickness: 0.0025”~0.01” (0.0635mm - 0.254mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 0.5”(12.7mm) / Max. roll capacity (OD): 4.3"(109 mm) 1”(25.4mm) Optional / Max. roll capacity (OD): 3.8"(96.5 mm) 1.5”(38.1mm) Optional

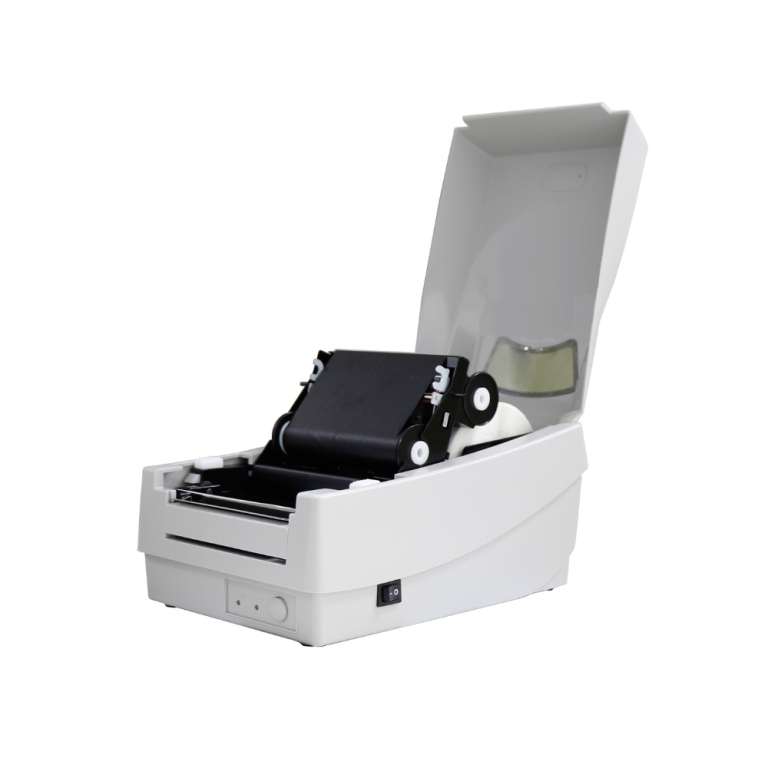

Ribbon	Ribbon width: 1”- 4” Ribbon Roll - max OD: 1.45“ (37mm) Ribbon length: Max. 92m Core size - ID: 0.5”(13mm) with notch, Wax, Wax/Resin, Resin (Outside Ribbon)
Drop Resistance	N/A
Printer Dimensions	W 186mm x H 165mm x L 278mm
Printer Weight	2.0 kg
Power Source	Universal Switching Power Supply Input: 100V-240V ± 10%, 1.5 A, 50-60Hz, Output: 24VDC, 2.9A
Battery	N/A
Operation Environment	Operation Temperature: 40°F-100°F (4°C-38°C), 0%-90% non-condensing, Storage Temperature: -4°F-122°F (-20°C-50°C)
Real Time Clock	N/A
Standard Item	N/A
Optional Items	Cutter, Stacker, RTC
Agency Listing	CE, FCC, UL, RoHS
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
