P4-250

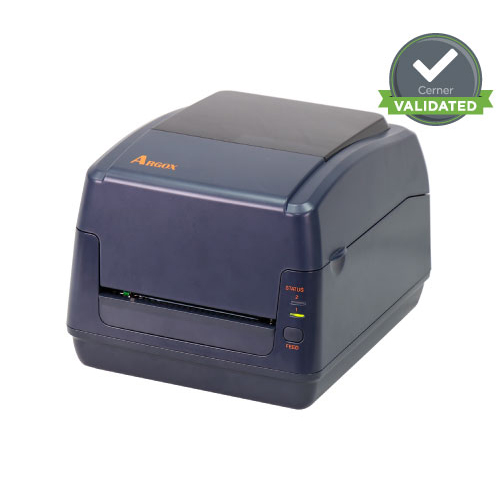

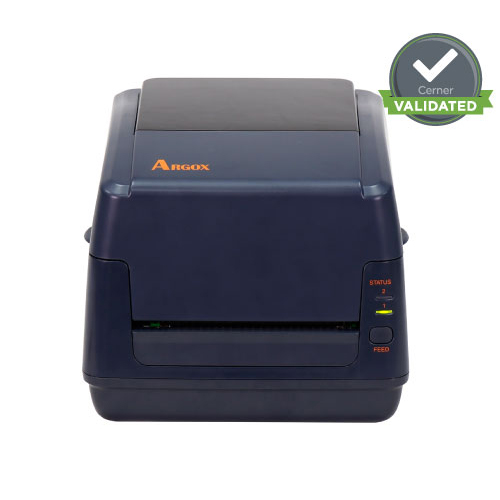

In order to fulfill customers need a space-saving printer, Argox developed new direct thermal & thermal transfer barcode printer P4series. It is suitable for tight spaces, also features stability and high performance. P4 series is a compact desktop barcode printer with high printing speed; it features 6ips, and 203 and 300dpi two resolutions to meet customer demand for high speed and high quality. P4 desktop barcode printer provide a user-friendly design; new mechanical design can set the media into center automatically. With a transmissive and reflective sensor, it can make sure media position in the right place. P4 series can auto detect ribbon wound ink-side out or ink-side. With green, orange and red three different status indicators, customers can stay informed of the latest printer situation. P4 built-in Ethernet, USB host, USB device, RS-232 connection interface also can upgraded to Wi-Fi, Bluetooth v2.1, regardless of wired and wireless environment can be used. The P4 series has Cerner certification.




Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	203 dpi(8 dots/mm)
Printing Speed	Max. 6 ips
Printing Length	Max. 100”(2540mm)
Printing Width	Max. 4.25”(108mm)
Memory	32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset)
Operation Interface	LED Indicator x 2, Button(Feed) x 1

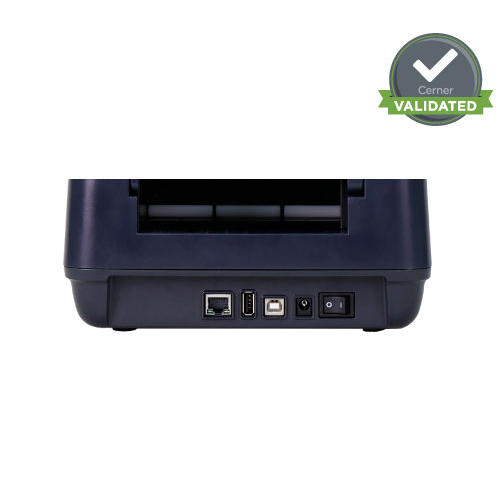

Communication Interface	USB device, RS-232, Ethernet, USB host
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
Wireless Security	N/A
1D Barcodes	PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
2D Barcodes	PPLA/PPLB/PPLZ: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes、Aztec
Graphics	PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
Emulation	PPLA, PPLB, PPLZ
Software-label Editing	BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software-utility	Printer Tool
Driver tools	Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.65” (118mm). Min. width: 0.88” (22.4mm). Thickness: 0.0024”~0.0075” (0.06mm~0.19mm) 5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; Dealer Option external media stand 8” OD on 1”/3” ID Core
Ribbon	Ribbon width: 1.6”~4.33”(40 mm~110mm), Ribbon length: Max. 300m. Core size ID 1”(25.4 mm) or 0.5”(12.7mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Drop Resistance	N/A
Printer Dimensions	W 220.6mm x H 187.5mm x D 278.5mm
Printer Weight	2.4 kgs
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 3.75A
Battery	N/A
Operation Environment	Operation Temperature: 41°F~104°F (5°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~140°F (-20°C~60°C)
Real Time Clock	N/A
Standard Item	N/A
Optional Items	Guillotine-Full Cutter / Partial Cutter, Dispenser , External media stand, Bluetooth v2.1, WLAN
Agency Listing	CE, FCC, cULus, RoHS, BSMI, RCM, CB, BIS
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
