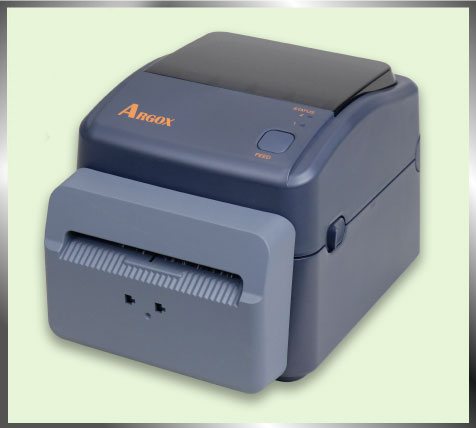

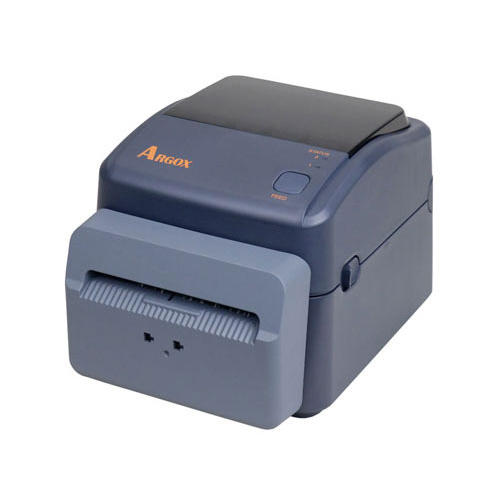

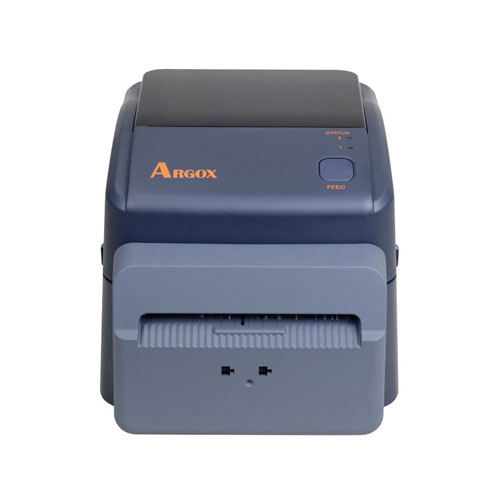

Argox D4-280plus linerless label printer
Go green with linerless labels!
Quality of life starting from environmental protection. From now on you can make a contribution to a green world. Argox new D4-280plus linerless label printer eliminates waste and brings more labels to you. Using “Print & Paste” 2 steps to make work effectively.
1. New modular design
Users are easy to disassemble and replace printer head, roller and cutter without any tool.
2. Easy to maintain
With special mechanism and cutter design, D4-280plus allows users to maintain quickly and easily.
3. Special surface coating
D4-280plus has special surface coating to prevent paper jam, ensuring smooth operation.
4. Multiple interfaces

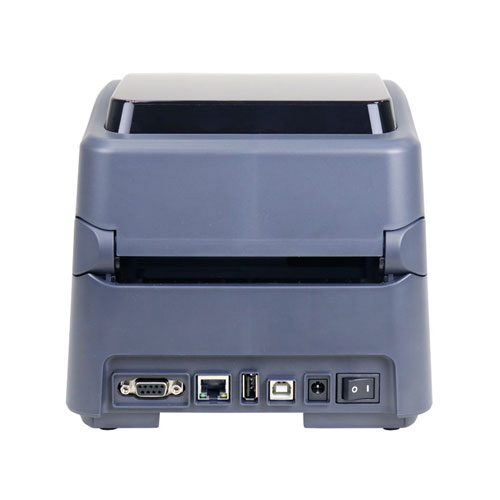

Built-in Ethernet, USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi / Bluetooth.
D4-280plus applications- Retail
- Takeaway & Delivery
- Transportation & Logistics
- Government service
-
Printing Method Direct Thermal Printing Resolution 203 dpi(8 dots/mm) Printing Speed Max. 6 ips Printing Length Max. 6”(152.4mm) Printing Width Max. 4.25”(108mm) Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB) CPU Type 32 bit RISC microprocessor Sensors Head open sensor, Paper end sensor (transmissive type), Taken off sensor Operation Interface LED Indicator x 2, Button(Feed) x 1 Communication Interface USB device, RS-232, Ethernet, USB host Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font Wireless Security N/A 1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars 2D Barcodes PPLA/PPLB/PPLZ: MaxiCode、 PDF417、 Data Matrix (ECC 200 only) 、 QR code、Composite Codes、Aztec Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI Emulation PPLA, PPLB, PPLZ Software-label Editing BarTender® from Seaguall Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) iLabelPrint (Android) Software-utility Printer Tool Media Type Linerless: Continuous Driver tools Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver Media Max. width: 4.6” (118mm). Min. width: 1” (25.4mm). Thickness: 0.09mm +/-10um 5”(127mm) OD on a 1.5” (38.1mm) ID core, 40mm ID core also available Ribbon N/A Drop Resistance N/A Printer Dimensions W 183.92mm x H 166.7mm x D 271.16mm Printer Weight 2.2 kgs Power Source Universal Switching Power Supply Input: 100V~240V±10%, 1.5A, 50~60Hz, Output: 24VDC, 2.5A Battery N/A Operation Environment Operation Temperature: 41°F~95°F (5°C~35°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) Real Time Clock N/A Standard Item N/A Optional Items Bluetooth v2.1, WLAN Agency Listing CB, CE, FCC Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
D4-280plus Brochure EN
D4-280plus Brochure EN V1.1
-
D4-280plus Brochure TW
D4-280plus Brochure TW V1.1
-
-
-
D4-280plus User Manual EN
D4-280plus User Manual EN V1.2
-
D4-280plus User Manual TW
D4-280plus User Manual TW V1.2
-
D4-280plus Quick Installation Guide
D4-280plus Quick Installation Guide V1.0
-
Web Setting Tool for LAN EN
Web Setting Tool for LAN EN V1.0
-
Web Setting Tool for LAN TW
Web Setting Tool for LAN TW V1.1
-
iLabelPrint User Manual
iLabelPrint User Manual V1.02
iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.
-
-
-
ArgoBar Pro V2.16
Barcode editing software
Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2022 R6
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
Printer Tool V1.1.1
Printer setup software
Supports Windows XP or later, and requires .Net Framework 3.5 -
Font Utility V3.04
Font tool
This tool software can use true type font (TTF) and printer fonts.
Supports Windows XP or later versions -
Command Library V4.12
Command Library V4.12 software development tool for professional users.
Supports Windows XP or newer versions, and supports both 32-bit and 64-bit versions. -
Argox SDK V1.4.0
Supports Java and C# programming languages
Supports Windows/Android/Linux operating platforms (different programming languages have different support ranges, please refer to the readme.html in the SDK for details)
Supports PPLB, PPLZ emulation. -
iLabelPrint+ V2.3.3 Google Play
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi, USB OTG connection on Android v8.0 and above.
-
iLabelPrint+ V2.3.3 App Store
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi connection on iOS 13 and above.
-
-
-
Argox Seagull Driver Argox_2024.1_M-0
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
-
Argox Linux Printer Driver V1.9.1 32-bit
Supports Linux 32-bit version.
Supports CUPS 2.1.X or later. -
Argox Linux Printer Driver V1.9.1 64-bit
Supports Linux 64-bit version.
Supports CUPS 2.1.X or later. -
Argox macOS Printer Driver V1.9.1
Supports macOS (available on M1 or later series, but requires Rosetta-2 to be installed).
Supports CUPS 2.1.X or later. -
Argox RPi Printer Driver V1.9.1 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi Printer Driver V1.9.1 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
-
