O4-250

product description
• Clamshell design, easy loading.
• Printing speed upgrade to 7 inches/sec.
• Multiple interfaces.
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-100m
Compare Inquire

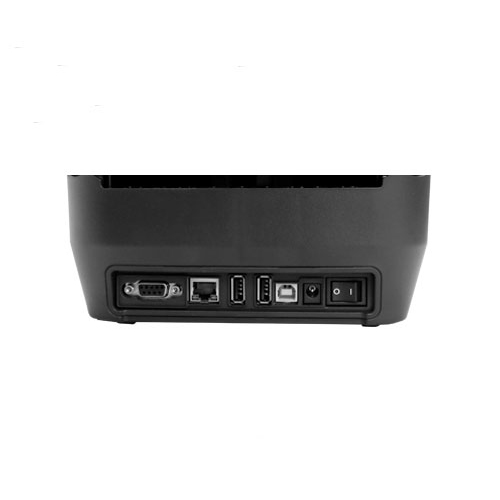

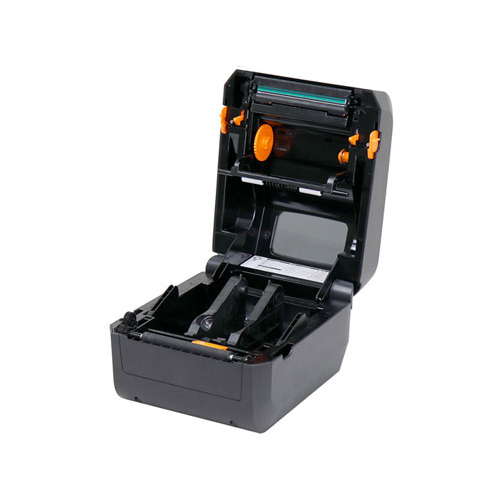

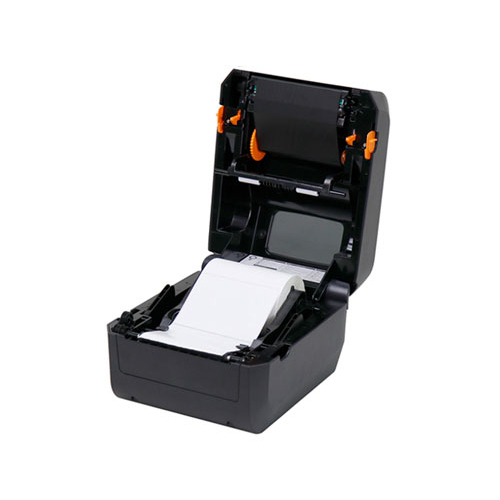

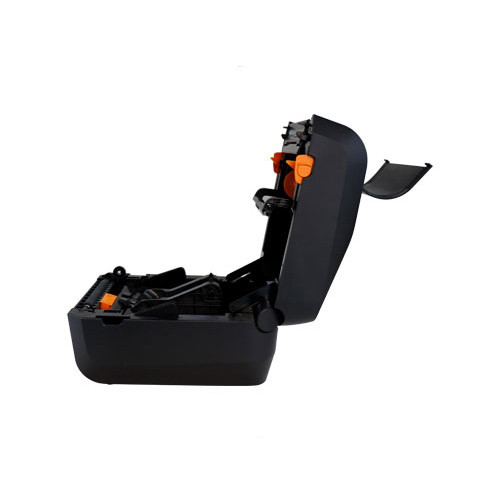

  • The O4 series features a user-friendly clamshell design that allows users to simply open the cover and loading ribbon and media.Featuring 7 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.The O4 series has built-in Ethernet, Dual USB hosts, USB device, RS-232 and it can be expended with Wi-Fi, Bluetooth v4.2.

    cp-2140ex_05

  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 203 dpi(8 dots/mm)
      Printing Speed Max. 7 ips
      Printing Length Max. 100”(2540 mm)
      Printing Width Max. 4.25” (108 mm)
      Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset)
      Operation Interface LED Indicator x 2, Button(Feed) x 1
      Communication Interface USB device, RS-232, Ethernet, USB host x 2
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
      2D Barcodes PPLA/PPLB/PPLZ: MaxiCode、 PDF417、 Data Matrix (ECC 200 only) 、 QR code、Composite Codes、Aztec
      Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI
      Emulation PPLA, PPLB, PPLZ
      Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      Software-utility Printer Tool
      Driver tools Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
      Media Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) 5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; 4.5”(115mm) OD on a 0.5” (12.7mm) ID core Dealer Option external media stand 8” OD on 1”/3” ID Core
      Ribbon Ribbon width: 1”~4.33”(25.4 mm~110mm), Ribbon length: Max. 110m. Core size ID 0.5”(12.7 mm), Core width: 4.33”(110mm)with notch Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 209mm x H 179.2mm x D 266mm
      Printer Weight 2.2 kgs
      Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine-Full Cutter / Partial Cutter, Dispenser , External media stand, Bluetooth v4.2, WLAN
      Agency Listing CB, CE, FCC, cTUVus, Energy Star, RoHS, BSMI, RCM, CB, BIS, KCC
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

    • ArgoBar Pro V2.15

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

      Download

    • BarTender 2021 R8

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

      Download

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

      Download

    • BarTender UL 10.1

      Barcode editing software
      Support Windows XP

      Download

    • Printer Tool V1.1.0

      Printer setup software

      Download

    • Font Utility V3.04

      Font tool
      For Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

      Download

    • Command Library V4.12

      Command Library V4.12 software developing tool for professional users.
      Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

      Download

    • Argox SDK V1.4.0

      SDK supports Java、C#／Windows/Android/Linux system, PPLB, PPLZ emulation.

      Download

    • iLabelPrint V1.03 Google Play

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

      Download

    • iLabelPrint V1.03 App Store

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

      Download

    • iLabelPrint V1.03 APK

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

      Download
