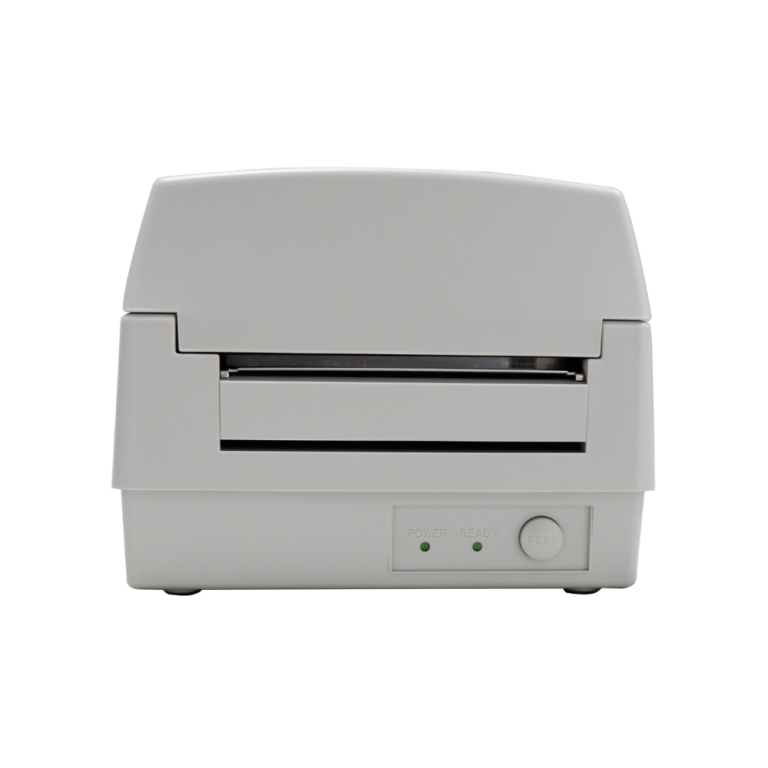

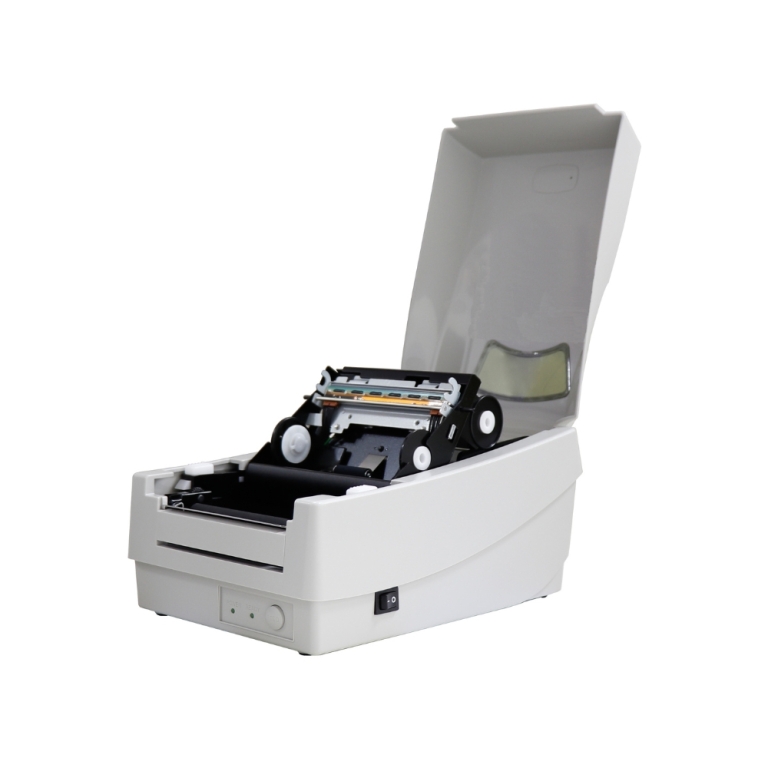

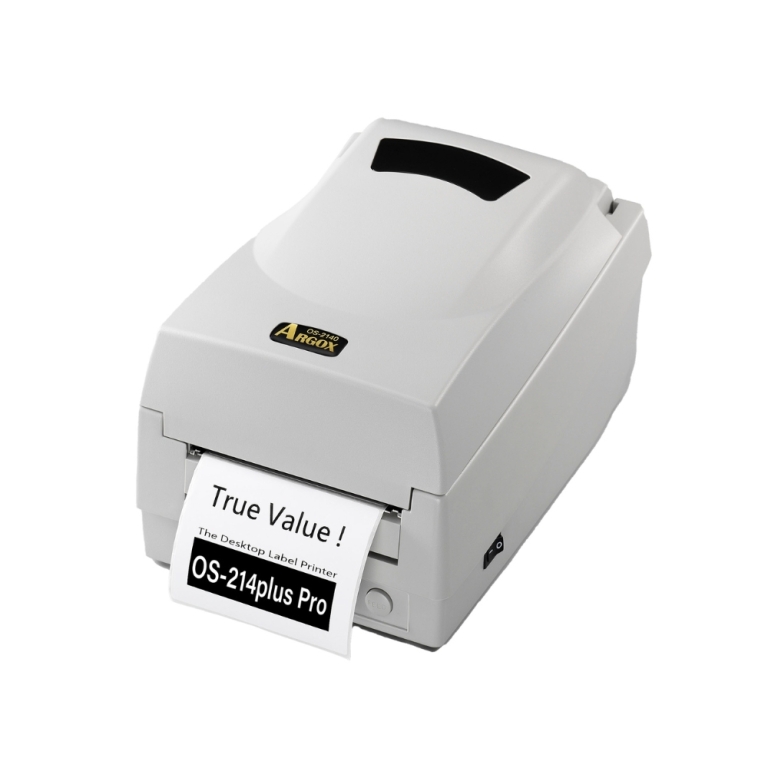

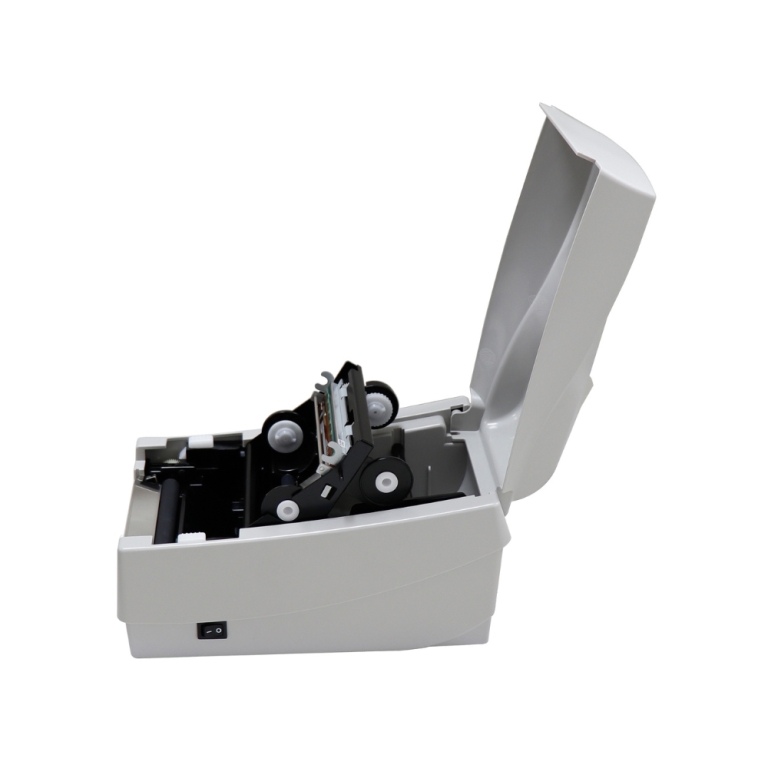

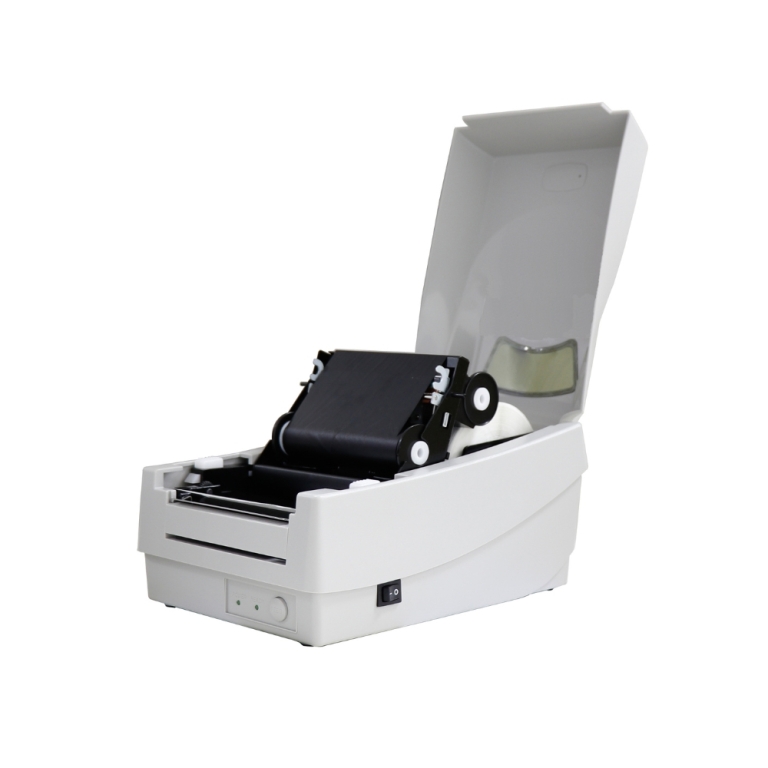

OS-214plus Pro

The OS-214plus Pro is the newest generation of Argox's most successful medium volume printer model. Its attractive and stylish design is just one of several new features and advanced functions. The significantly larger onboard memory increases print capability for producing a wider range of label applications. A full-speed USB interface adds flexibility for use with any of today's notebook and other computers. Its space-saving design offers the same small footprint and light weight as previous models for easy and convenient placement. The new OS-214plus Pro maintains Argox's leading position as the industry standard for style, price, and performance.

PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, BMP, Binary Raster, and GDI PPLZ: GRF, Hex and GDI

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	203 dpi (8 dots/mm)
Printing Speed	Max. 4 ips
Printing Length	Max. 100”(2540mm)
Printing Width	Max. 4.16”(105mm)
Memory	128MB SDRAM, 128MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective
Operation Interface	LED Indicator x 2, Button(Feed) x 1
Communication Interface	RS-232, USB
Fonts	Internal character sets standard5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotationSoft fonts are downloadableAbility to print any Windows True Type font easily. Support scalable fontGB 18030 Standard (Chinese coded character set) support
Wireless Security	N/A
1D Barcodes	PPLA: Code 39, UPC-A, UPC-E, Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128, UCC/EAN-128 K-MART,UCC/EAN-128 Random weight, Telepen, FIM, Interleaved 2 of 5 (Standard/with modulo 10 checksum / with human readable check digit/ with modulo 10 checksum &shipping bearer bars), and GS1 Data bar (RSS)PPLB: Code 39, UPC-A, UPC-E, Matrix 2 of 5, UPC-Interleaved 2 of 5, Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar,Postnet, Code128 subset A/B/C, Code 128 UCC (shipping container code) , Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with checksum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on, UPCE2/5 digit add-on, and GS1 Data bar (RSS)PPLZ: Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit,Code 93, Code 39 with check sum digit, MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey, GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, and Logmars
2D Barcodes	PPLA: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite CodesPPLB: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite CodesPPLZ: QR code, PDF417, Data Matrix (ECC 200 only), and MaxiCode Composite Codes
Graphics
Emulation	PPLA, PPLB, PPLZ
Database Link	Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software	Printer Tool, Font Utility
Drivers	Windows Driver for Windows Vista/Win7/Win8/Win10/Win11, LINUX Driver, macOS Driver, Raspberry Pi Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.33” (110mm). Min. width: 1” (25.4mm).Thickness: 0.0025”~0.01” (0.0635mm - 0.254mm)Max. roll capacity (OD): 4.3"(109 mm) Core size 0.5”(12.7mm) /Max. roll capacity (OD): 4.3"(109 mm) 1”(25.4mm) Optional /Max. roll capacity (OD): 3.8"(96.5 mm) 1.5”(38.1mm) Optional
Ribbon	Ribbon width: 1”- 4”Ribbon Roll - max OD: 1.45“ (37mm)Ribbon length: Max. 92mCore size - ID: 0.5”(13mm) with notch, Wax,Wax/Resin, Resin (Outside Ribbon)
Drop Resistance	N/A
Printer Dimensions	W 186mm x H 165mm x L 278mm
Printer Weight	2.0 kg
Power Source	Universal Switching Power Supply Input: 100V-240V ± 10%, 1.5 A, 50-60Hz, Output: 24VDC, 2.9A
Battery	N/A
Operation Environment	Operation Temperature: 40°F-100°F (4°C-38°C), 0%-90% non-condensing,Storage Temperature: -4°F-122°F (-20°C-50°C)
Real Time Clock	N/A
Standard Item	N/A
Optional Items	Cutter, Stacker, RTC
Agency Listing	CE, FCC, UL, CCC, RoHS, BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
