Home Products Barcode Printers Desktop Printers D2 Series
D2 Series
Product Categories
Product Tags (multiple selection)

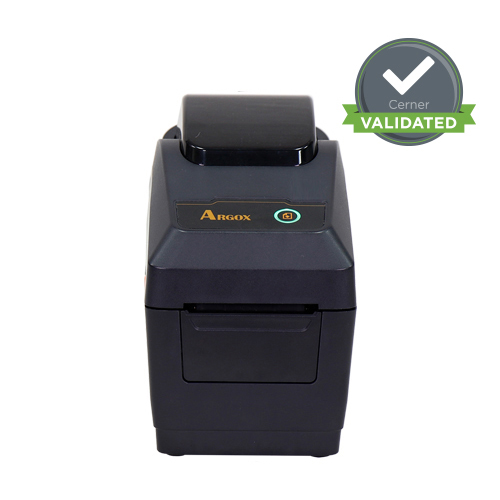

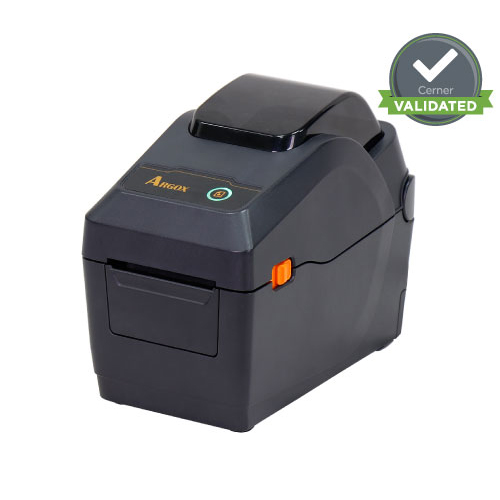

D2-250

product description

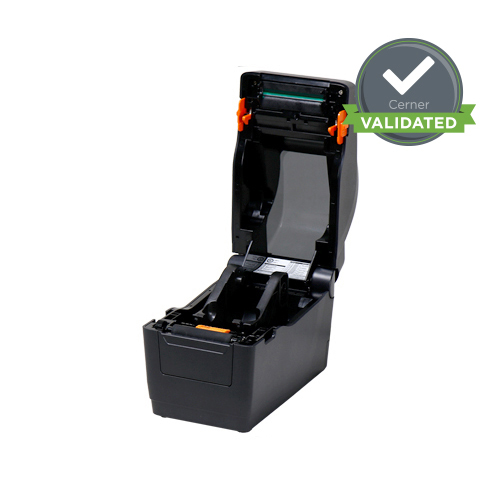

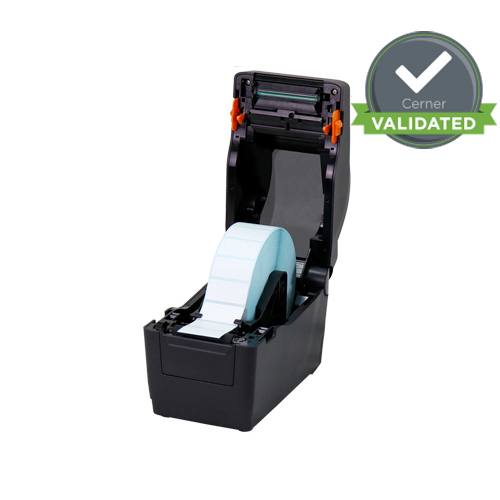

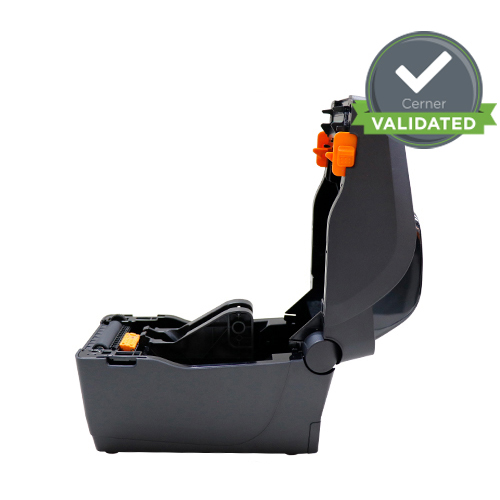

• Clamshell design,easy loading.
• Compact size.
• Enhanced connectivity.
• The D2 series has Cerner certification.
Tags :
  • Printer-Printing-width-2"
  • Printer-Direct-thermal
  • Printer-Cerner-certification
Compare Inquire
  • The D2 series features a user-friendly clamshell design that allows users to simply open the cover and loading media.Small footprint design, the compact D2 series fits into tight spaces and supports a wide range of applications.The D2 series has built-in USB host, USB device, and it can be expanded with Ethernet/RS232, Wi-Fi, Bluetooth v4.2. The D2 series has Cerner certification.

    螢幕擷取畫面 2021-11-18 170714

  •   Printing Method Direct Thermal
      Printing Resolution 203 dpi(8 dots/mm)
      Printing Speed Max. 7 ips
      Printing Length Max. 100”(2540mm)
      Printing Width Max. 2.13”(54 mm)
      Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset)
      Operation Interface LED Indicator x 2, Button(Feed) x 1

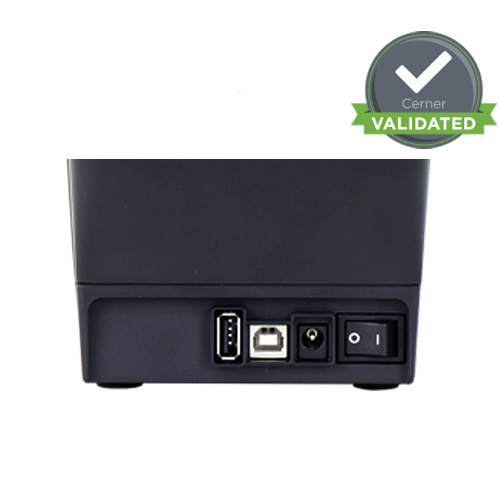

      Communication Interface USB device, USB host
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
      2D Barcodes PPLA/PPLB/PPLZ: MaxiCode、 PDF417、 Data Matrix (ECC 200 only) 、 QR code、Composite Codes、Aztec
      Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI
      Emulation PPLA, PPLB, PPLZ
      Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      Software-utility Printer Tool
      Driver tools Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket or plain paper label
      Media Max. width 60mm. Min. width 12mm. Media thickness: 0.06~0.2mm 5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; 4.5”(114mm) OD on a 0.5” (12.7mm) ID core.
      Ribbon N/A
      Drop Resistance N/A
      Printer Dimensions W 116mm x H 170mm x D 215mm
      Printer Weight 1.05 kgs
      Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine-Full Cutter / Partial Cutter, Dispenser , Bluetooth v4.2, WLAN, RS-232, Ethernet
      Agency Listing CE, FCC, cTUVus, Energy Star, RoHS, BSMI, RCM, CB, BIS
      Attention  *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

    • ArgoBar Pro V2.16

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

      Download

    • BarTender 2022 R6

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

      Download

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

      Download

    • Printer Tool V1.1.1

      Printer setup software
      Supports Windows XP or later, and requires .Net Framework 3.5

      Download

    • Font Utility V3.04

      Font tool
      This tool software can use true type font (TTF) and printer fonts.
      Supports Windows XP or later versions

      Download

    • Command Library V4.12

      Command Library V4.12 software development tool for professional users.
      Supports Windows XP or newer versions, and supports both 32-bit and 64-bit versions.

      Download

    • Argox SDK V1.4.0

      Supports Java and C# programming languages
      Supports Windows/Android/Linux operating platforms (different programming languages ​​have different support ranges, please refer to the readme.html in the SDK for details)
      Supports PPLB, PPLZ emulation.

      Download

    • iLabelPrint+ V2.3.3 Google Play

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Blurtooth, LAN, WiFi, USB OTG connection on Android v8.0 and above.

      Download

    • iLabelPrint+ V2.3.3 App Store

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Blurtooth, LAN, WiFi connection on iOS 13 and above.

      Download
