iX4 Series
Product Categories
Product Tags (multiple selection)

iX4-350

product description
• For high volume printing.
• Printing speed upgrade to 6 inches/sec.
• Multiple interfaces.
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-450m
Compare Inquire

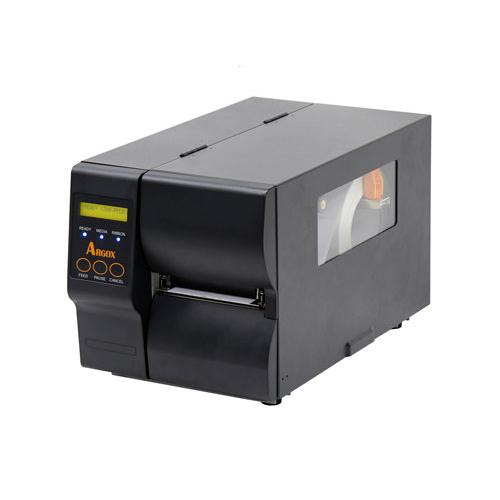

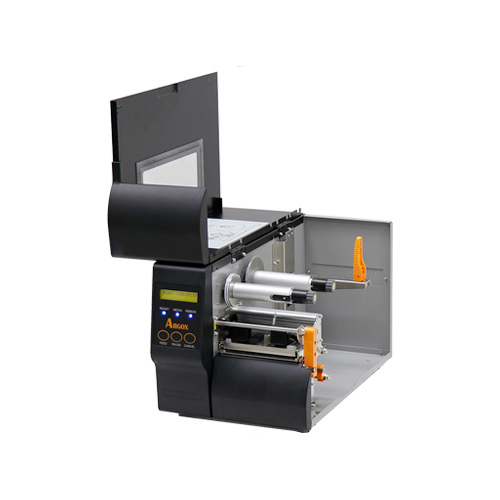

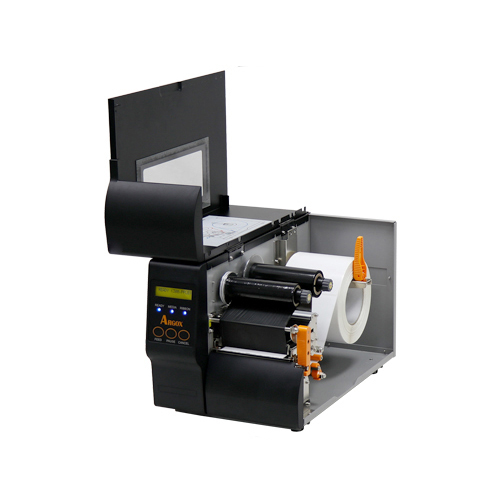

  • With new mechanical design, iX4 series supports a large 8.26 inch outer diameter label roll and up to 450 meter ribbon capacity. Featuring iX4-350 6ips print speed, even print with the highest speed, it can still maintain the perfect print quality. The iX4 series has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.

    cp-2140ex_05
  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 300 dpi(12 dots/mm)
      Printing Speed Max. 6 ips
      Printing Length Max. 50”(1270mm)
      Printing Width Max. 4.08”(103.7 mm)
      Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)

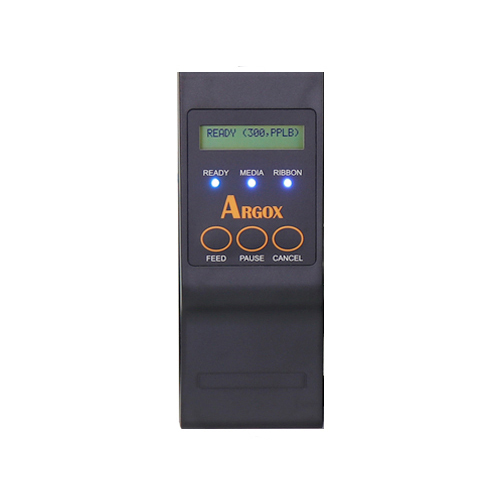

      Operation Interface LED indicator x 3, Button x 3, LCD Display x 1

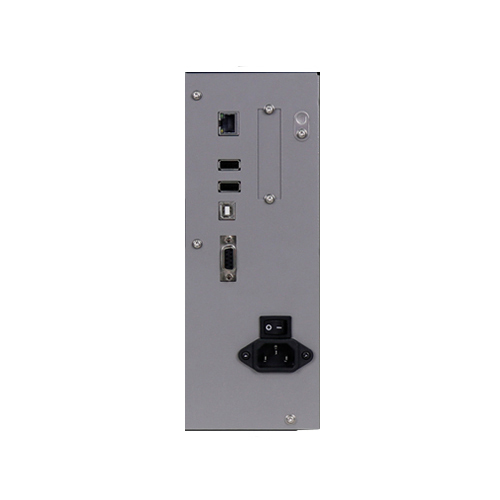

      Communication Interface USB device, RS-232, Ethernet, USB host x 2
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
      Wireless Security N/A
      1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
      2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
      Graphics PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
      Emulation PPLA, PPLB, PPLZ
      Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      Software-utility Printer Tool
      Driver tools Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
      Media Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core
      Ribbon Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length: 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 257 mm x H 263 mm x D 432 mm
      Printer Weight 13 kgs
      Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
     Battery N/A
      Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock Standard
      Optional Items Guillotine cutter, Rotary cutter, Peeler, Rewinder kit, WLAN, GPIO, Parallel module, External rewinder
      Agency Listing CE, CB, cULus, FCC, ICES, Energy Star, RoHS, BSMI
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

    • ArgoBar Pro V2.15

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

      Download

    • BarTender 2021 R8

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

      Download

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

      Download

    • BarTender UL 10.1

      Barcode editing software
      Support Windows XP

      Download

    • Printer Tool V1.1.0

      Printer setup software

      Download

    • Font Utility V3.04

      Font tool
      For Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

      Download

    • Command Library V4.12

      Command Library V4.12 software developing tool for professional users.
      Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

      Download

    • Argox SDK V1.4.0

      SDK supports Java、C#／Windows/Android/Linux system, PPLB, PPLZ emulation.

      Download

    • iLabelPrint V1.03 Google Play

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

      Download

    • iLabelPrint V1.03 App Store

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

      Download

    • iLabelPrint V1.03 APK

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

      Download













  		•
